Continuous Rotary Furnace HTF1000-36/210-V-R Tube Furnace

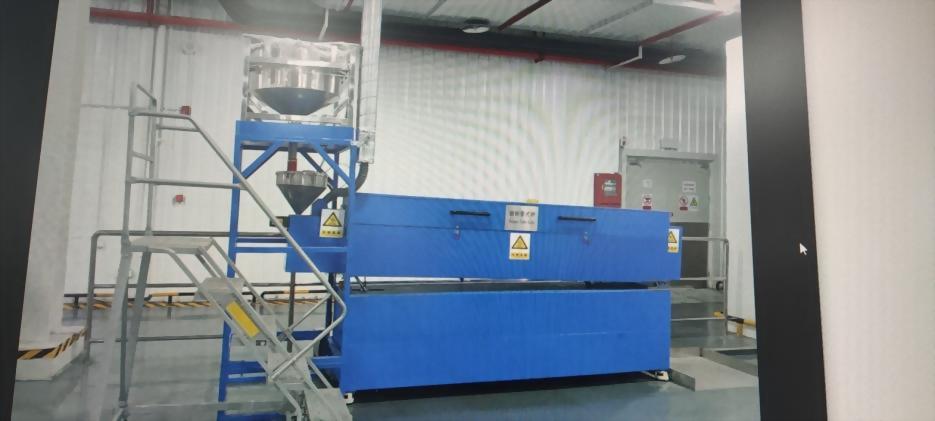

Continuous rotary furnace

Model : HTF1000-36/210-V-R

Q'ty :

Description
Specifications

This tubular furnace utilizes internationally advanced technology and features an openable rotary design. Primarily designed for the co-firing of powders, the furnace tubes can rotate 360° during heating, increasing the uniformity of powder sintering. The furnace body can also be tilted for unloading, with an angle of up to 15°. Equipped with a vacuum system, it rapidly removes oxygen from the furnace, significantly shortening the cycle time. Therefore, it is particularly suitable for the heat treatment of biomass materials, the sintering of lithium battery materials, and the reaction sintering of other compounds. The diameter of this rotary furnace is selectable, and the heating zone can be customized, making it suitable for sintering large quantities of powder in laboratory settings.

Furnace Structure	Horizontal, Openable, Continuous
Furnace Tube Length	Approximately 5000mm in total length
Furnace Tube Material	310 stainless steel tube, inner diameter 360mm, wall thickness 8mm, with internal lifting plates
Main Control Operating Temperature	≤1000℃
Effective Volume of Constant Temperature Zone	25L (Total furnace volume 125L) Maximum feed rate: 20KG/hour
Material specific gravity	1.7g/cm³
Main control heating rate	1~10℃/min
Main control heating element	Silica carbon rod
Main control furnace material	Alumina fiber insulation refractory material
Temperature control accuracy	±1℃
Sealing method	Graphite seal
Temperature sensing element	K-type thermocouple (dual-core thermocouple) (5 thermocouple temperature control modes, more uniform temperature control)
Temperature sensing position	External temperature control + internal 5-point calibration
Gas supply type	Oxygen or air
Flow meter type	Float flow meter
Gas type	1 type
Interface size	1/4"
Pressure range	0～0.02MPa
Operating ambient temperature	15～50℃
Power supply	220V 50 Hz / 60 Hz
