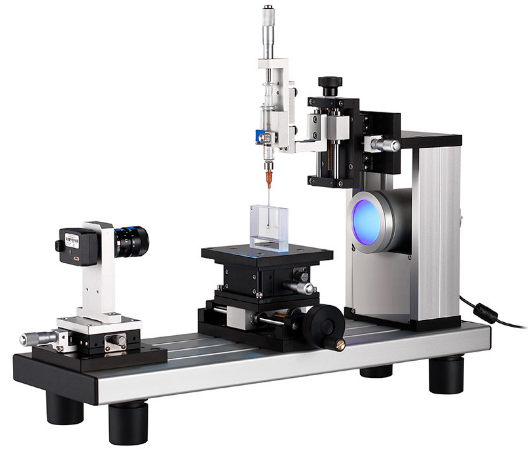

Description

Camera

USB 2.0 CMOS industrial monochrome digital camera, maximum resolution 752x480.

30fps at maximum resolution (upgradeable to 60fps).

Optical Lens

50mm high-resolution, low-distortion, high-speed industrial vision lens.

Field of View

Field of View (FOV): 10.5 x 6.5 (mm x mm)

Manual Doser

Precision liquid dispenser driven by a manual micrometer head, accepts glass or disposable plastic syringes. Dosing resolution: 0.6 μl.

Dosing Unit Carrying/Adjustment Stage

Manual; Vertical (Z) movement: Linear bearing + lead screw drive, 40mm travel;

Horizontal (Y) movement: Precision micrometer head drive, 13mm travel.

Sample Stage

Manual, sample stage platen dimensions: 100 x 100 mm;

Sample stage y-axis: Linear bearing + lead screw drive, travel: 83 mm;

Sample lift: Linear bearing + lead screw drive, travel: 35 mm, maximum load: 6 kg.

Maximum sample size

∞ (L) x 285mm (W) x 45mm (H)

Focusing stage

Manual precision stage for focus adjustment; travel: 13 mm.

Light Source

Single-color, high-uniformity LED: Heat-free, image brightness adjustable via software

Frame Material

ITEM high-strength, anodized aluminum

Power Supply

50/60Hz, 110/240VAC

Measurement Software

SurfaceMeter Elements™ Surface Analysis and Measurement Software

Operating System Requirements

Windows 7/8/10 (32-/64-bit)以上

Minimum PC System Configuration*

2 GHz CPU, 2 GB RAM, 500 GB HD, 1366x768 screen resolution, 1x USB 2.0 port

Instrument Dimensions and Weight

545mm (L) x 160mm (W) x 465mm (H), ca. 11kg
