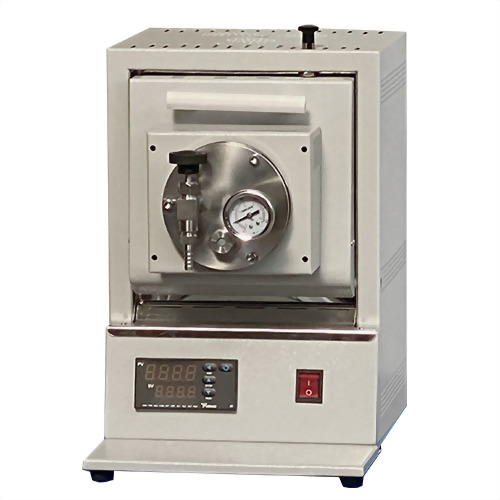

Vacuum furnace (mini controlled atmosphere type)
Features：
1. Compact and lightweight, it can be placed directly into a glove box via the large transition chamber, eliminating the need for laboratory space.
2. It can be used as a box furnace for heat treatment of larger samples. The large quartz chamber, equipped with a highly airtight vacuum flange, allows for sintering samples in either vacuum or atmospheric conditions.
3. Utilizing advanced refractory and thermal insulation materials, it minimizes heat loss and effectively reduces equipment power consumption.
4. It can handle a wide range of heat treatment and sintering processes for various materials.
|
Product Model |
NBD-VAH1200-80CI |
|
Electrical Specifications |
AC220V 1KW |
|
System Vacuum |
5-10PA （Optional molecular pump for higher vacuum） |
|
Available Temperature |
1200℃ （<1 hour） |
|
Maximum Operating Temperature |
800℃ （continuous） |
|
Available Heating Rate |
≤20℃ / minute |
|
Temperature Control Accuracy |
+ / - 1℃ |
|
Furnace Chamber Dimensions |
100 × 100 × 100 mm |
|

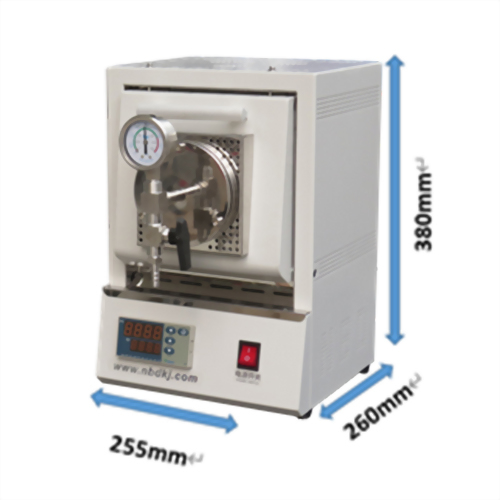

Furnace Body Dimensions |
255 mm L × 390 mm H × 390 mm D Excluding furnace tube: 255 mm L × 390 mm H × 300 mm D
Bevel angle 370 mm
|
◎ CE Certified
◎ Brand / NOBODY
