Features and Applications:

1. Atmospheric pressure plasma technology is a method for improving production quality through surface activation and/or cleaning.

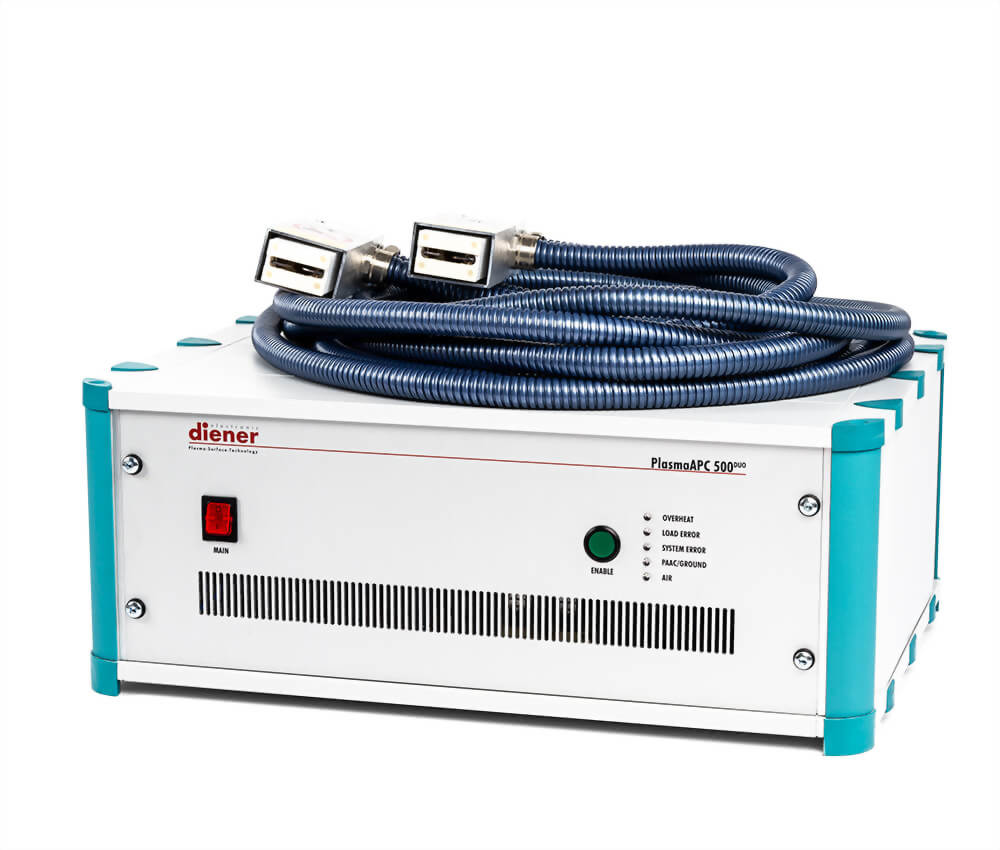

2. The Plasma APC 500 DUO is suitable for the following applications: plastics technology, elastomer technology, small-batch production, medical engineering, research and development, optics, etc.

Specifications:

● Processing width: Maximum 50-60 mm per nozzle

● Power supply:

    > Width 562 mm

    > Height 211 mm

    > Depth 420 mm

● Plasma generator: Approximately 40 kHz / 500 W (per nozzle)

● Operation:

    > Manual: via button on the front panel

    > Semi-automatic: via SUB-D connector on the back panel

● Application examples:

    > Laboratory/small batch

    > Production/fully automated

● Plasma head:

    > 2 generators:

        1. Length 180 mm

        2. Width 60 mm

        3. Depth 40 mm

        4. Weight approximately 0.5 kg

Brand: Diener / Germany, CE
