Characteristics and Benefits:

Parexylene coatings offer numerous advantages.

● Complete compatibility, meaning they can even adapt to complex substrate contours, such as sharp edges, drill holes, or blind holes.

● Pinhole-free coating thickness of approximately 0.5 micrometers.

● Chemically insoluble, resistant to a wide range of chemicals.

● Excellent barrier properties against moisture and chemicals.

● High dielectric strength.

● Dry lubrication properties (low coefficient of friction).

● Hydrophobic: H₂O downwell angle is between 92° and 98°.

● Transparency between 90% and 96% in the visible wavelength range (depending on type).

● Biocompatibility: C-type and N-type parexylenes can be individually certified to USP VI, ISO 10993, and FDA standards.

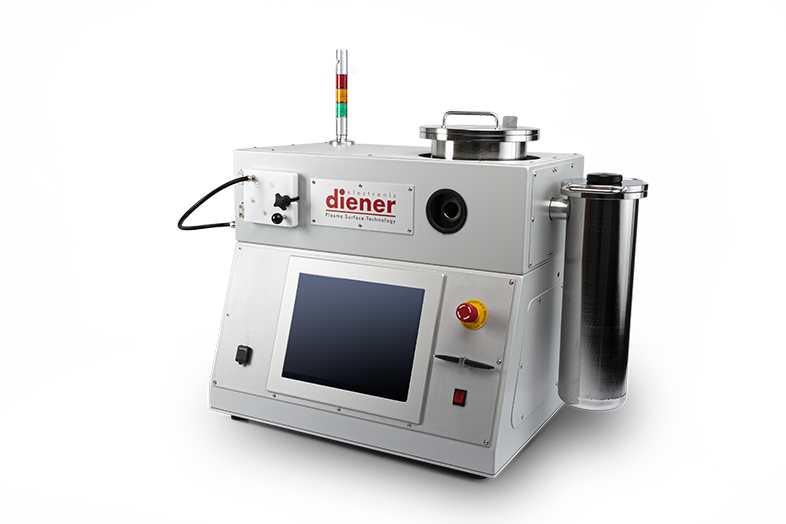

Specifications:

● Dimensions: 700mm x 700mm x 500mm (Width x Height x Depth)

● Vacuum Deposition Chamber: Diameter 200 mm, Height 200 mm, Volume approximately 6 liters. Other chamber dimensions can be provided upon request.

● Rotating support: 170 mm diameter, 170 mm height

● Coating material: Parylene N, C, D, F-VT 4

● Possible coating thickness: 0.05 to 30 micrometers

● Pyrolysis chamber: 1.6 kW / up to 750 °C

● Cold trap: Liquid nitrogen or electromechanical cooler

● Vacuum system: Two-stage rotary vane pump

● Pumping speed: 16 m³/h

● Ultimate vacuum pressure: 1 x 10⁻³ mbar

● Power supply: 230V/16A, 50/60Hz

● Control: PC control (Microsoft Windows 10 IoT)

Brand: Diener / Germany, CE
