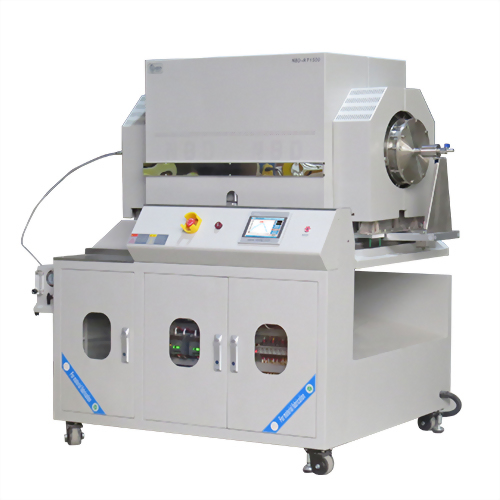

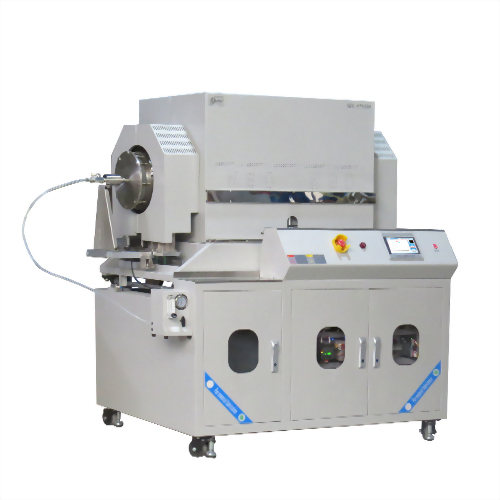

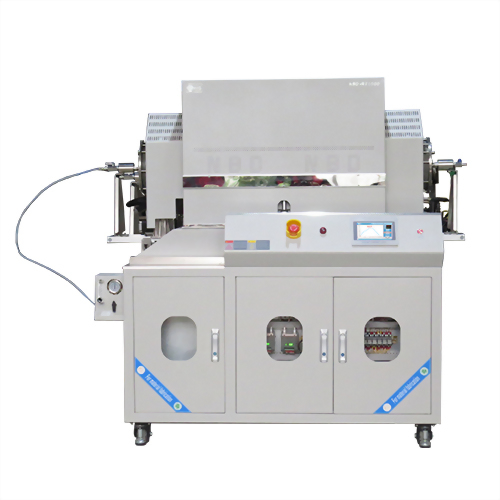

Oxidation furnace (rotating swing type)

Model : NBD-RT1500-200T2F

Features:

1. The furnace tubes are made of a new silicon nitride-bonded silicon carbide material, offering excellent oxidation resistance, good wear resistance, and resistance to molten metal corrosion.

2. PLC centralized control simplifies operation, and a 7-inch touch screen displays all data in real time for intuitive and clear viewing.

3. An alarm function enables unattended sintering.

4. The furnace chamber can be automatically opened by the control system, facilitating maintenance of the furnace tubes and heating system.

5. High-purity Al2O3 fiber refractory insulation provides excellent insulation and effectively reduces power consumption.

6. An advanced and stable dynamic sealing system ensures the equipment can be used in both vacuum and atmospheric conditions.


Product Model

NBD-RT1500-200T2F

Electrical Specifications

Three-phase ~ 380V  50/60HZ18 KW

Maximum Temperature

1450℃

Temperature Control Accuracy

±1℃

Temperature Measuring Element

S-type Thermocouple  170mm

Heating Zone Length

640 mm

Furnace Tube Dimensions

φ200 × φ180 × 1400 mm

Furnace Body Dimensions

L 1760mm × D 1120mm × H 1665mm

Lift Tilt Angle

-6° -15°

Oscillation Angle

±3°

CE Certified

◎ Brand / NOBODY
