Features：

1. Double-layer water-cooling structure significantly reduces the shell surface temperature;

2. Equipped with high-purity heating elements with excellent acid and corrosion resistance;

3. Refractory insulation material manufactured using a vacuum forming process minimizes heat loss and effectively reduces equipment power usage;

4. Integrated liner design ensures system sealing;

5. Touchscreen operation with intuitive temperature curve display;

6. Gas control options include variable area flowmeters and mass flowmeter controllers.

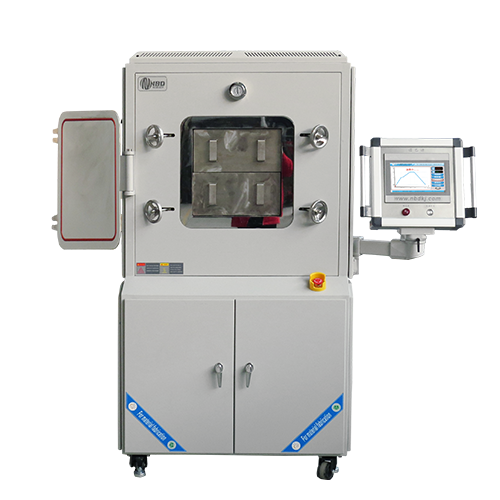

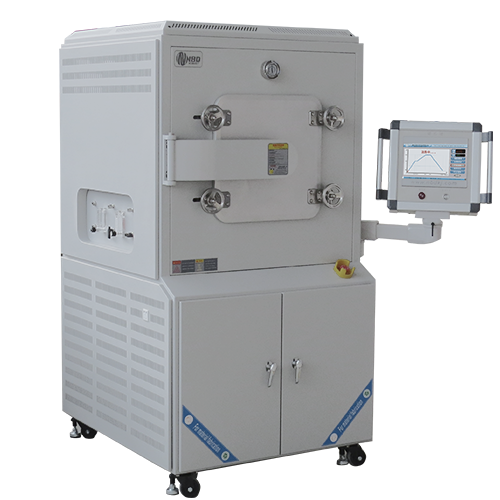

Model：NBD-VA1100-40T1

Power Supply：Three-phase, five-wire ~ 380V 50/60Hz

Ultimate Vacuum：10 Pa

Temperature Control Accuracy：± 1°C

Rated Power：20 kW

Maximum Temperature：1100°C

Inner Chamber Dimensions：370 mm L x 370 mm H x 460 mm D

Furnace Chamber Volume：60 liters

External Dimensions：1600 mm L x 1100 mm D x 1800 mm H

Recommended Heating Rate：≤ 20°C/minute

◎ CE Certified

◎ Brand: NOBODY
