Features and Applications:

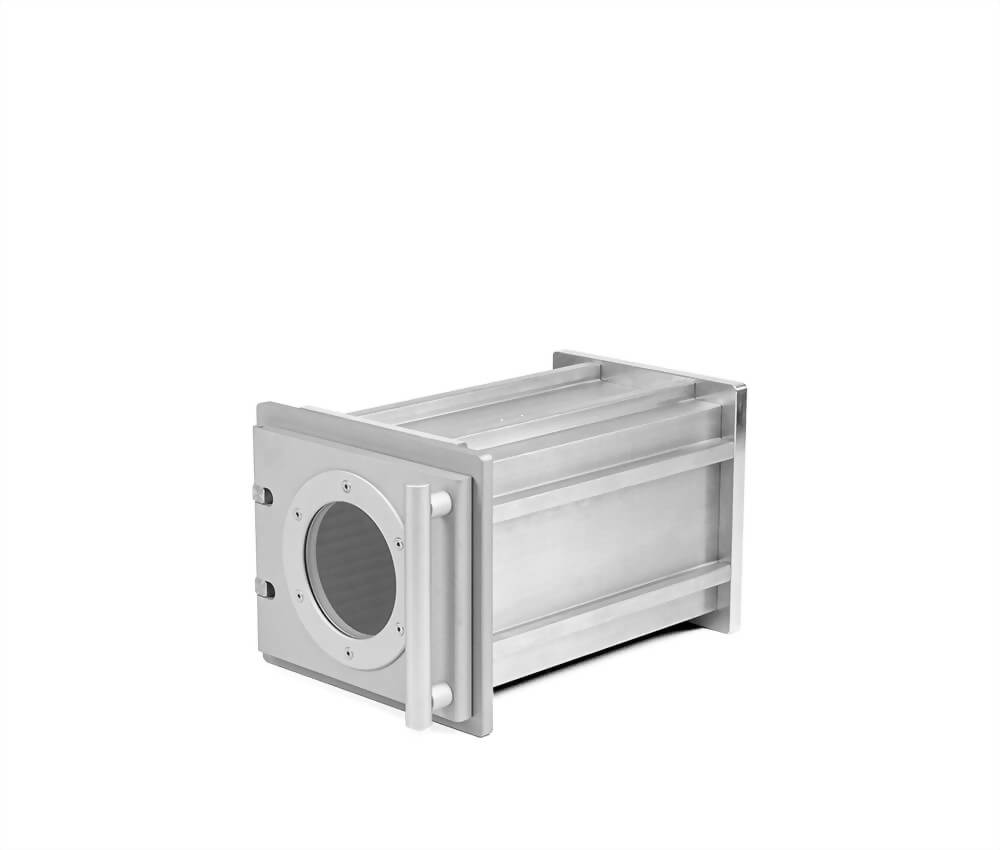

● We at Diener Electronics have been manufacturing vacuum systems for 25 years. Our results are based on a unique, flexible chamber system using extruded aluminum profiles. Three-meter-long profiles are cut to the required length and equipped with bolt-on rear walls and doors. Slits are provided on the side walls of the profiles to facilitate the insertion of product carriers.

● This system offers significant advantages:

    ＞ Maximum flexible length of 3 meters

    ＞ Very fast delivery, as only doors and back walls need to be replaced

    ＞ Low cost

    ＞ Lightweight

    ＞ No complex product carrier installation required

    ＞ Color selection via anodizing

    ＞ Excellent thermal conductivity

    ＞ Enables highly clean processes, such as in the semiconductor industry

    ＞ Simple and convenient operation

    ＞ No soldering required; parts can be easily connected

    ＞ Easy connection to existing partitions

Specifications:

● Internal Dimensions:

    ＞ Length: Maximum 3000mm (Standard: 325mm, 600mm)

    ＞ Width: 150mm

    ＞ Height: 160mm

    ＞ Front panel (optional): 6 U (1 U = 44.45 mm)

    ＞ Volume: Approximately 8 to 14 liters

● Connectors:

    ＞ 4 × KF 16

    ＞ 1 × KF 40

● Door: Hinged door with viewing mirror

Brand: Diener / Germany, CE
