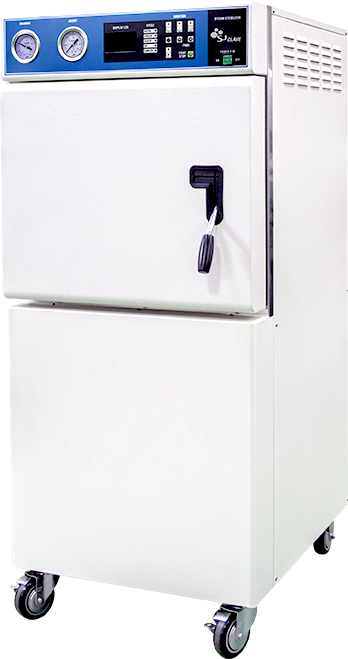

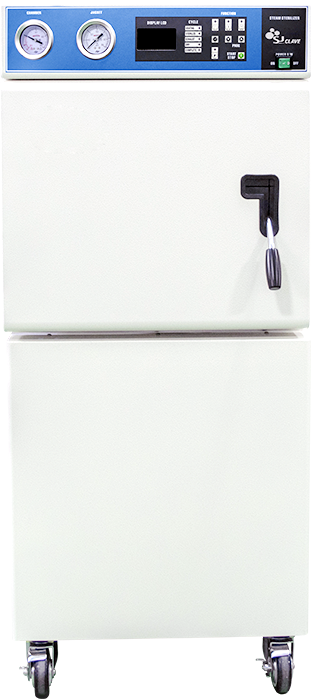

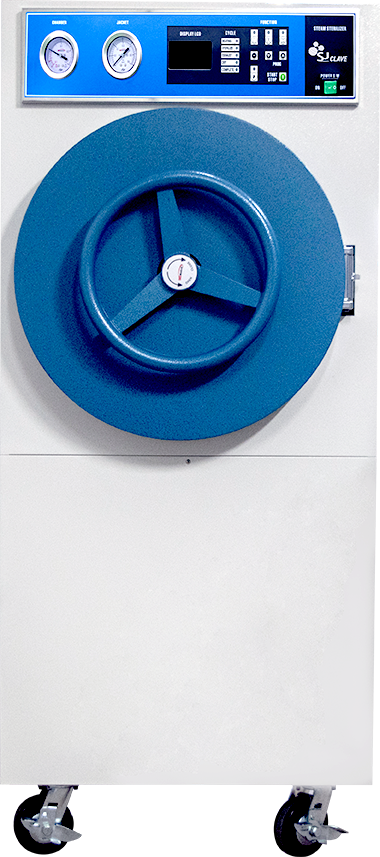

Rapid vacuum drying autoclave SJ-ML
Features
- Large Capacity Design: Available in a variety of capacity options, including 70 L, 100 L, 120 L, and 200 L, suitable for processing large samples and environments with high volume requirements.
- Fully Automated Sterilization Process: Supports a seamless process from tap water supply, pre-vacuuming, heating, sterilization, exhaust, to vacuum drying. A built-in intelligent control system ensures simple and efficient operation.
- Double-Jacketed Structure: Enhances operational stability and energy efficiency, increasing durability and safety for long-term operation.
- Intelligent Diagnostics and Display: Utilizes an LED/LCD display interface with 12 self-diagnostic warning codes for immediate response to abnormal conditions.
- Multiple Safety Mechanisms:
Automatic Circuit Breaker/Safety Valve
Door Lock Sensor and Pressure Monitoring
Water Level Monitoring, Self-Diagnostics, and other safety features.
- High-Efficiency Sterilization and Drying Performance: Equipped with a water pump and extraction system, it improves sterilization and vacuum drying efficiency.
Application areas:
Biological and life science laboratories, medical institutions, food production industry, veterinary industry, etc.
|
Spec / Model |
SJ-ML70 |
SJ-ML100 |
SJ-ML120 |
SJ-ML200 |
|
|
Overall Size (WxHxL)mm |
600x1,400x740 |
600x1,400x970 |
600x1,400x1,120 |
750x1,718x1,368 |
|
|
Chamber Size (ØxL)mm |
450x520 |
415x750 |
415x900 |
505x1,025 |
|
|
Type |
Circular |
||||
|
Material |
Stainless Steel 304 |
Stainless Steel 316 |
|||
|
Capacity |
70Liter |
100Liter |
120Liter |
200Liter |
|
|
Air Remover |
Vacuum / Gravity |
||||
|
Sterilization Temp. Range |
121℃ ~ 132℃ |
||||
|
Course |
7 Kind |
||||
|
Steam Generator |
Built-in / 6kw |
Built-in / 9kw |
Built-in / 12kw |
||
|
Control System |
Microprocessor |
8 Bit Microprocessor |
|||
|
Water Source |
1.0kgf/cm2 ~ 3.0kgf/cm2, 15A |
||||
|
Vacuum System |
Water Pump / Water Ejector |
||||
|
Power Source |
AC 380V / AC 220V, 60Hz |
AC 380V, 60Hz(3-Phase,4-Wire) |
|||
|
Tray Size (WxHxL)mm |
382x20x476 |
382x20x706 |
382x20x846 |
494x20x1,004 |
|
|
Tray Material |
Stainless Steel 304 |
||||
|
Drain Pipe |
30A |
||||
|
Weight |
190kg |
220kg |
250kg |
390kg |
|
|
Safety Device |
Over Temp. Protection / Over Pressure Protection / Circuit Breaker / Safety Valve / Self Diagnostic System |
||||
|
Option |
Printer : Paper = (W)58 x Ø40(L) 13M |
||||
