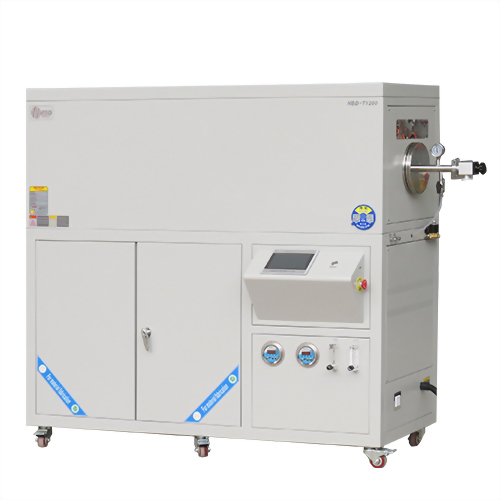

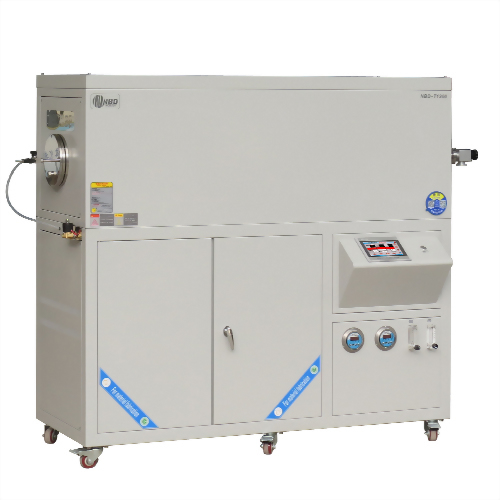

Large diameter intelligent tubular furnace 1200℃
Features：
1. Extra-large tube diameter, extra-long temperature zone, and multi-point temperature control ensure uniform temperature distribution.
2. High-purity Al₂O₃ fiber refractory insulation provides excellent insulation and significantly reduces power consumption.
3. The furnace body utilizes a double-layer air-cooled structure, effectively reducing the shell's surface temperature.
4. A constant pressure system automatically adjusts the pressure within the furnace tube.
5. Quick-opening stainless steel sealing flanges facilitate easy loading and unloading.
|
Product Model |
NBD-T1200-152T2 |
NBD-T1200-152T3 |
NBD-T1200-215T3 |
|
Electrical Specifications |
AC380V 10KW |
AC380V 15KW |
AC380V 24KW |
|
Achievable Temperature |
1200℃ （<1 hour） |
||
|
Continuous Temperature |
1100℃ （Continuous） |
||
|
Achievable Heating Rate |
≤20 ℃ / minute |
||
|
Heating Zone Length |
600 mm |
1100 mm |
1100 mm |
|
Furnace Tube Dimensions |
Φ152 × 1200 mm |
Φ152 × 1650 mm |
Φ215 × 1660 mm |
◎ CE Certified
◎ Brand / NOBODY
