Applications:

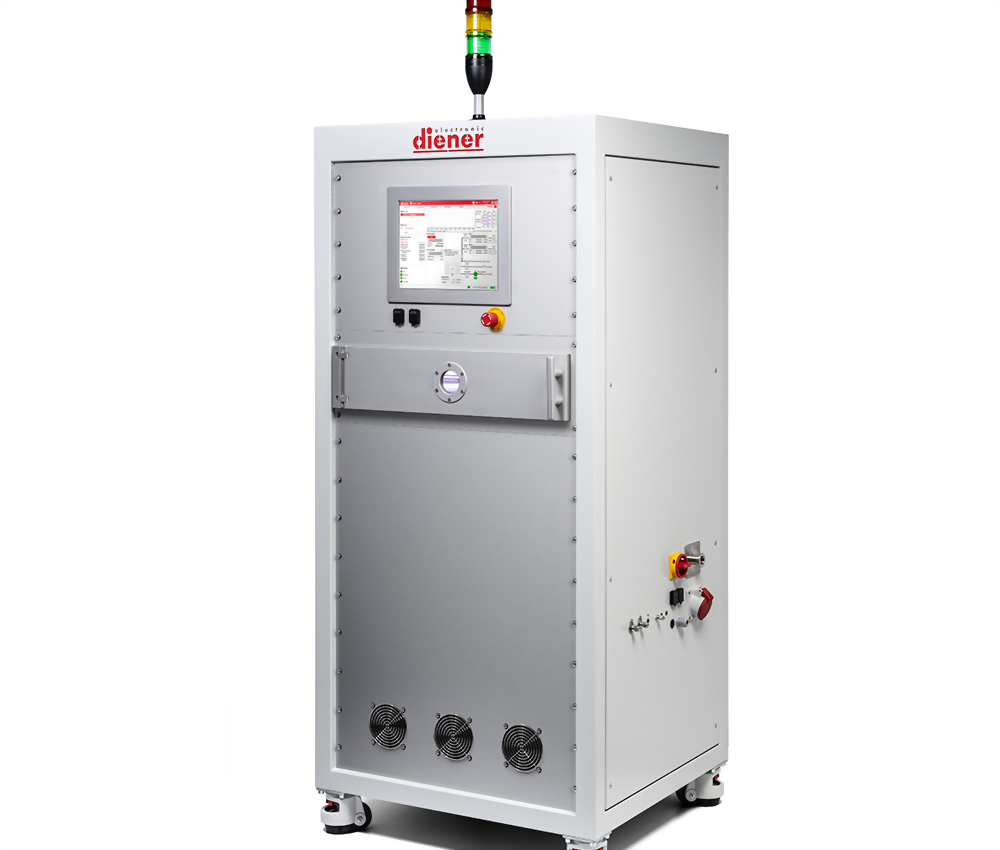

● The Tetra 45 plasma system can be combined into various modular configurations. With a chamber height of 125 mm and a width of 572 mm, it's particularly well-suited for large parts. Because the chamber is made of extruded aluminum, the length can be flexibly adjusted.

● The Tetra 45 plasma system is primarily used in the following fields: analysis (SEM, TEM), archaeology, automotive, life sciences, elastomer technology, electrical engineering, electron microscopy, precision engineering, research and development, semiconductor technology, small-batch production, plastics technology, medical engineering, microsystems technology, solar cell technology, and textile technology.

Specifications:

● Chamber volume: Ca. 45 liters

● Housing:

    > Width 600 mm

    > Height 1700 mm

    > Depth 800 mm

● Plasma Generator:

    > 80 kHz / 0 - 1000 W; 0 - 3000 W

    > 100 kHz / 0 - 500 W

    > 13.56 MHz / 0 - 300 W

    > 2.45 GHz / 0 - 850 W

● Control:

    > Basic PC

    > Full PC

● Application Examples:

    > Laboratory/Small Batch Production

    > Production/Fully Automatic

● Vacuum Chamber:

    > Aluminum Rectangular with Hinged Door: W 572 mm x H 125 mm x D 650 mm

    > Aluminum Rectangular with Drawer: W 572 mm x H 125 mm x D 650 mm

Brand: Diener /Germany, CE
