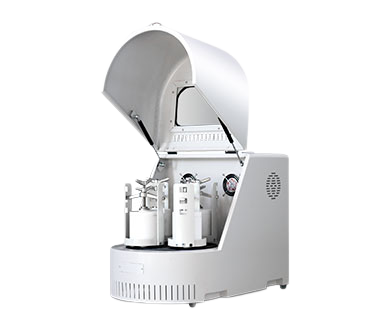

Our planetary ball mills are compact, versatile, highly efficient, and low-noise. They are ideal for obtaining research samples (up to four samples per experiment) in research institutions, universities, and corporate laboratories. Equipped with a vacuum mill, they can grind samples under vacuum.

The machine housing features a semicircular design, stamped with high-precision dies, creating an elegant, refined, and high-end look. Machined parts are CNC-machined, the planetary discs are integrally cast, and the transmission gears are made of precision gears made of special materials, ensuring smooth and quiet operation at high speeds. The mill's clamping mechanism is convenient, safe, and reliable.

Ball Mill Specifications：

1. Power Supply: 220V

2. Motor Power/Inverter Power (kW): 0.25

3. Total Run Time (min): 1-9999

4. Forward/Reverse Alternating Run Time: 1-999

5. Speed Control: Variable Frequency Drive

6. Adjustable Speed (Revolution rpm): 45-435

7. Adjustable Speed (Autorotation rpm): 90-870

8. Noise Level ≤ 58dB

9. Weight (kg): Approximately 29

10. Dimensions (mm): 500 x 300 x 340

Compatible Ball Mill Jar Specifications：

1. Size: 0.4L

2. Compatible Ball Mill Jar Size: 50-100ml

3. Quantity: 4

4. Note: Optional 50ml vacuum ball mill available.

Mark: TENCAN Co.
