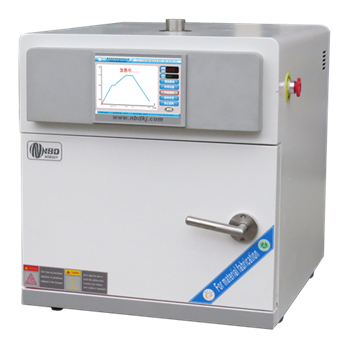

Microwave high temperature box furnace
Features：
1. Convenient, clean, efficient, safe, reliable, and uniformly stable heating, significantly improving product consistency and yield.
2. Safe and reliable fully microwave-shielded cavity design.
3. Equipped with a continuously adjustable, high-stability, long-life dedicated industrial microwave source.
4. Simple operating control system.
5. Attractive appearance, compact and compact structure, and easy use and maintenance.
6. Touchscreen operation with intuitive temperature curve display.
Applications：
1. Inorganic powder synthesis
● Electronic ceramic powders: barium titanate, barium strontium titanate, strontium titanate, barium zirconate titanate, etc.
● Lithium-ion battery positive electrode materials: lithium cobalt oxide, lithium manganate, etc.
● Various pigments, glazes, inorganic pigments, etc.
● Other inorganic powders: manganese tetraoxide, lithium yttrium oxide, zinc ferrite, trichromatic phosphor powder, glass, cement, etc.
2. Electronic Ceramics Sintering
● Varistors, thermistors, piezoelectric ceramics, microwave dielectric ceramics, etc.
3. Oxide Ceramics and Refractory Material Sintering
● Alumina, zirconia, magnesia, and other oxide composites, etc.
4. Magnetic Material Sintering
● Ni-Zn ferrite, gyromagnetic ferrite, etc.
5. Ashing, incineration, and burnout tests.
|
Product Model |
NBD-WBM1700-14TI |
|
Working Environment |
1. AC 220V ±10V, 50Hz stable power supply; 2. Clean water supply;
3. Environment Type: Temperature: 5-40°C, Humidity: 5-85%
|
|
Electrical Specifications |
AC220V / 3KW |
|
Working Temperature |
1650℃ |
|
Temperature Measurement Method |
Infrared Thermometer |
|
Temperature Range |
250℃ ~ 1650℃ |
|
Output Power |
0.2-1.4kW, continuously adjustable |
|
Microwave Output Frequency |
2.45 GHz ±25MHz |
|
Microwave Leakage Rate |
<2mW / cm² |
|
Cooling Method |
Water Cooling |
|
Saggar Internal Dimensions |
L 85 × W 85 × D 30 mm |
|
External Dimensions and Weight |
L 590 × H 680 × Depth 680 mm |
|
Weight |
75KG |
|
Control System |
NBD-101P embedded operating system 1. Utilizes a custom-designed industrial-grade microwave source to ensure continuous, stable, and long-term operation. 2. Achieves ultra-fast heating and significantly shortens holding time, exponentially increasing experimental efficiency. 3. Steplessly adjustable microwave output power ensures precise temperature control curves. 4. Utilizes an imported high-precision infrared thermometer for direct sample temperature measurement. 5. Offers three operating modes: manual, automatic, and constant temperature, with flexible switching.
6. Multiple temperature control curves can be set and stored, with automatic operation log storage and printer compatibility. Real-time temperature control curve display enables dynamic monitoring of the heating process.
|
◎ CE Certified
◎ Brand / NOBODY
