Applications:

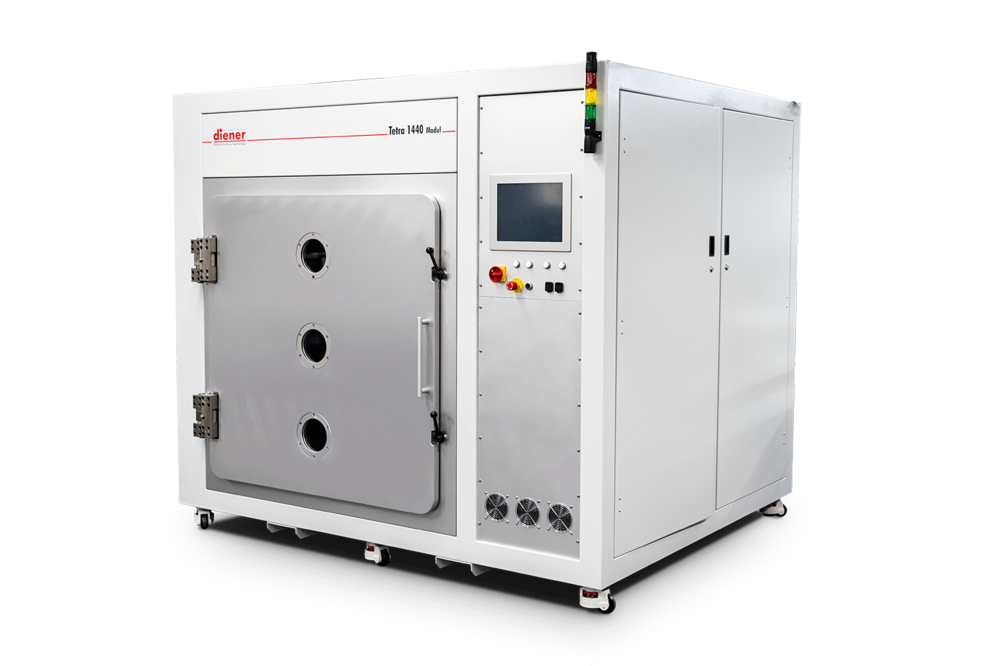

● The Tetra 1440 production system, with a chamber volume of 1440 liters and PC control, is used for high-volume production (cleaning, etching, and activation): applications include analytics, archeology, automotive, R&D, semiconductor technology, small-batch production, plastics technology, medical engineering, microsystems technology, sensor technology, sterilization, and textile technology.

● The system is also available in chamber sizes ranging from 600 mm W x 600 mm H x 500 mm D to 1200 mm W x 1200 mm H x 2500 mm D.

Specifications:

● Housing: 2400 mm wide, 2130 mm high, 2000 mm deep    (Modularly expandable in 500 mm increments)

● Chamber: 1200 mm wide, 1200 mm high, 1000 mm deep    (Modularly expandable in 500 mm increments)

● Chamber volume: Approximately 1440 liters

● Gas supply: As per customer's specifications

● Plasma generator: 1 (80 kHz/5000 W)

● Control: PC control (Windows)

● Parts intake: As per customer's specifications

Brand: Diener / Germany, CE
