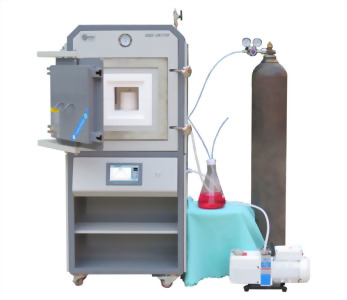

Vacuum box furnace (atmosphere controllable)
The NBD-VA1200 vacuum atmosphere furnace is widely used for heat treatment of cemented carbide, ceramics, and powder metallurgy materials in low vacuum, reducing, and protective atmospheres. It can also be used for quenching, annealing, and brazing of materials such as high-speed steel, alloy molds, and soft magnetic alloys. It features the following features：
1. Utilizing OR27A17M02 heating and imported high-temperature reflective coating material, the vacuum atmosphere furnace achieves uniform temperature field and a pure heating chamber.
2. The vacuum atmosphere furnace features a 7-inch touchscreen control, enabling real-time curve acquisition and a wide range of expansion spaces.
3. The vacuum atmosphere furnace chamber is made of high-purity alumina fiber through vacuum adsorption, resulting in 60% energy savings compared to conventional products.
4. The furnace chamber size can be customized to meet specific user needs.
|
1 |
Product Name |
Vacuum Atmosphere Furnace |
|
2 |
Model |
NBD-VA1200-20TI2F |
|
3 |
Control Mode |
7-inch Touchscreen |
|
4 |
Furnace Chamber Material |
Imported Fiber |
|
5 |
Heating Method |
oCr2A17M02 |
|
6 |
Reachable Temperature |
1200℃ |
|
7 |
Operating Temperature |
≤1150℃ |
|
8 |
Heating Rate |
Recommended：10℃ / min |
|
9 |
Heating Zone |
One Zone |
|
10 |
Furnace Chamber Net Dimensions |
200 × 200 × 300 |
|
11 |
Sealing Method |
Vacuum Silicone Sealing Flange |
|
12 |
Control Mode |
NBD-101E embedded operating system with English-Chinese compatible graphical interface, 7-inch color touchscreen input, intelligent human-computer interaction mode, real-time heating power display, and nonlinear temperature correction. |
|
13 |
Temperature Control Accuracy |
± 1℃ |
|
14 |
Temperature Curve |
Multiple "Time-Temperature Curves" can be set arbitrarily |
|
15 |
Prestored Curves |
Up to 100 prestored temperature curves |
|
16 |
Overtemperature Alarm |
Yes |
|
17 |
Overcurrent Protection |
Yes |
|
18 |
Broken Coupler Warning |
Yes |
|
19 |
Gas Supply System |
2-way float flowmeter (with mixing system), 60 ~ 600ml / min |
|
20 |
Temperature Measuring Element |
K-type Thermocouple |
|
21 |
Electrical Certification |
CE Certification |
|
22 |
Power Supply |
220V 50/60Hz |
|
23 |
Power Consumption |
5KW |
|
24 |
Dimensions |
L 650 × H 1540 × D 600 mm |
|
25 |
System Vacuum |
≤100 Pa |
|
26 |
Packaging |
Export Packaging |
|
27 |
Included Accessories |
Plug, O-ring, tools, instruction manual. |
|
28 |
Optional |
1. Proton flow control system;
2. Molecular pump high vacuum control system
|
◎ CE certified
◎ Brand: NOBODY
