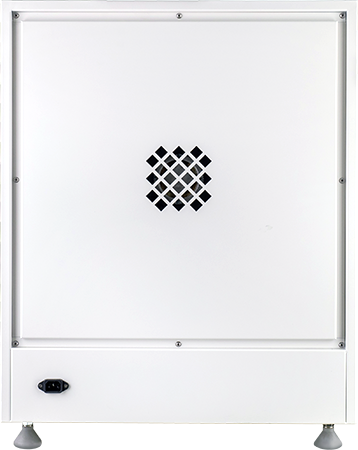

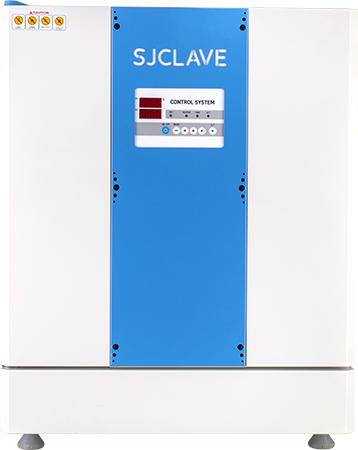

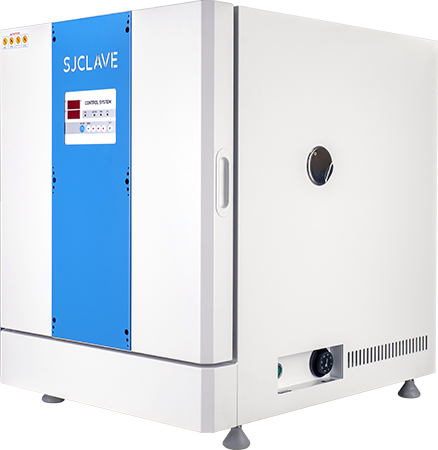

Incubator SJ-IB
Features
- Precise Temperature Control: A wide adjustable temperature range ensures a stable and reliable culture environment.
- Humidity Control: Select models support humidity adjustment to simulate optimal culture conditions.
- Various Capacities: Available in small to large capacities, suitable for various experimental scales.
- Intelligent Operation: LCD/touchscreen control panel for simple and intuitive operation.
- Safety Design: Overtemperature protection and alarm system ensure experimental safety.
- Wide Applications: Suitable for microbial culture, cell culture, food or pharmaceutical research, etc.
Applications:
Cell and tissue culture, pharmaceutical research, food research, animal research, solubility studies, etc.
|
Spec / Model |
SJ-IB80 |
SJ-IB150 |
SJ-IB252 |
|
AIR CIRCULATION |
Forced Convection |
||
|
MAX TEMP |
Max 60℃ |
||
|
DIMENSION INTERNAL (mm) |
430×400×470 |
550×450×600 |
700×600×600 |
|
DIMENSION EXTERNAL (mm) |
574×635×718 |
694×685×848 |
844×835×848 |
|
CAPACITY |
80ℓ |
150ℓ |
252ℓ |
|
MATERIAL INTERNAL |
Stainless Steel (304) with Polishing Finished |
||
|
MATERIAL EXTERNAL |
Steel Plate SS #41 with Powder Heating Coated |
||
|
DOOR |
Outer Door (Magnet) & Inner Door (5T Tempered Glass) |
||
|
MOVING CASTER |
Fixed Caster |
||
|
MATERIAL PACKING |
Silicon Rubber Packing |
||
|
VENT |
40Ø Vent Hole |
||
|
TEMP & TIME CONTROLLER |
Digital Microprocess P.I.D. Controller |
||
|
TIME RANGE |
00.00 ~ 99Hr 59Min (or Min-Sec) Selectable Digital Timer |
||
|
HEATER CONTROL |
S.S.R. (Solid State Relay) |
||
|
HEATER CAPACITY |
300W |
500W |
1kW |
|
POWER |
220–230V Max 1.4A |
220–230V Max 2.3A |
220–230V Max 4.5A |
|
SAFETY |
Electric Leakage Breaker, Over Temp. Protection Device |
||
|
SHELVES |
Coating Wire Shelves × 2ea |
||
|
INSULATED COMPONENT |
Glass-Wool |
||
