Features and Applications:

● Pico plasma systems can be combined into different variants in a modular manner.

● Pico plasma systems are primarily used in the following fields: analysis (SEM, TEM), archaeology, automotive, R&D, semiconductor technology, small-batch production, plastics technology, medical engineering, microsystems technology, sensor technology, sterilization, textile technology, etc.

Specifications:

● Chamber volume: Approximately 5-8 liters

● Housing: Desktop/Standalone

    > Width 310-560 / 600 mm

    > Height 330-860 / 1700 mm

    > Depth 420-600 / 800 mm

● Plasma generator:

    > 40 kHz / 0-200 W

    > 100 kHz / 0-500 W

    > 13.56 MHz / 0-300 W (max. 200 W)

    > 2.45 GHz / 0-300 W

● Control unit

    > Semi-automatic

    > Basic Computer

   > Fully Computerized

● Application Examples:

    > Laboratory/Small Batch Production

    > Production/Fully Automatic

● Vacuum Chambers:

    > Stainless Steel Round with Lid: Ø 150 mm, D 320 mm

    > Stainless Steel Rectangular with Hinged Door: Dimensions 160 mm (W) x 160 mm (H) x 325 mm (D)

    > Aluminum Rectangular with Hinged Door: Dimensions 160 mm (W) x 160 mm (H) x 325 mm (D)

    > Quartz Glass (UHP) Round with Lid or Hinged Door: Ø 130 mm, D 300 mm

    > Borosilicate Glass (HP) Round with Lid or Hinged Door: Ø 130 mm, D 300 mm

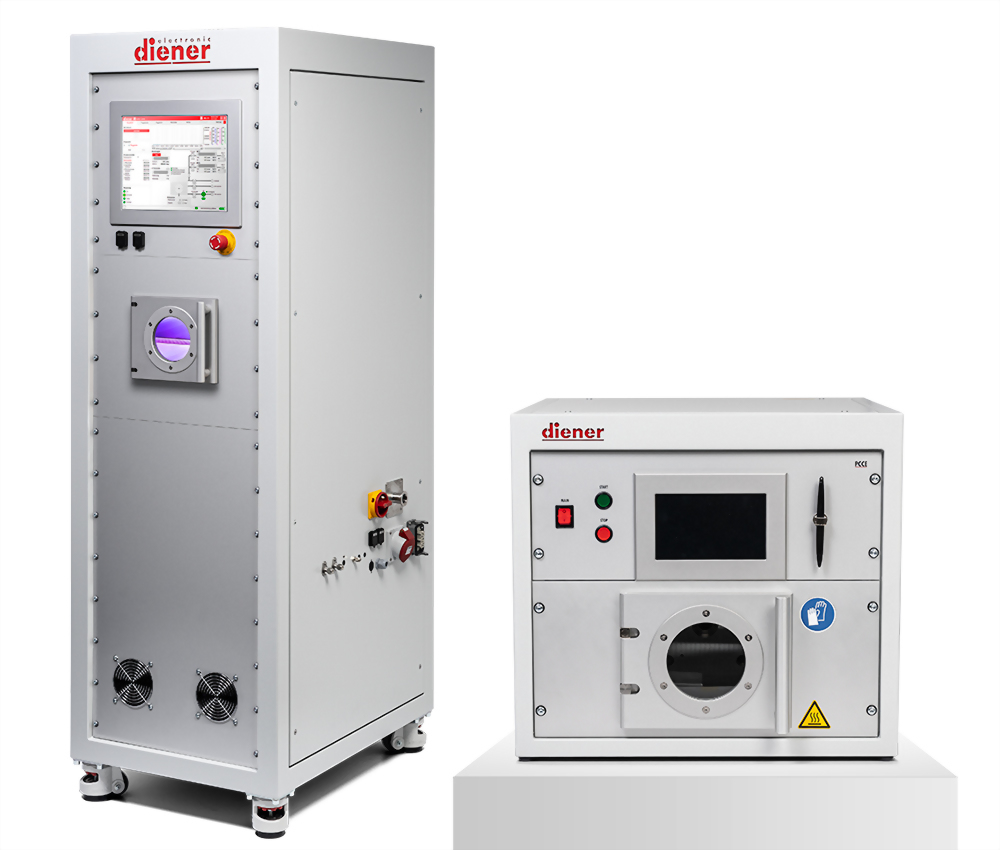

Brand: Diener / Germany, CE
