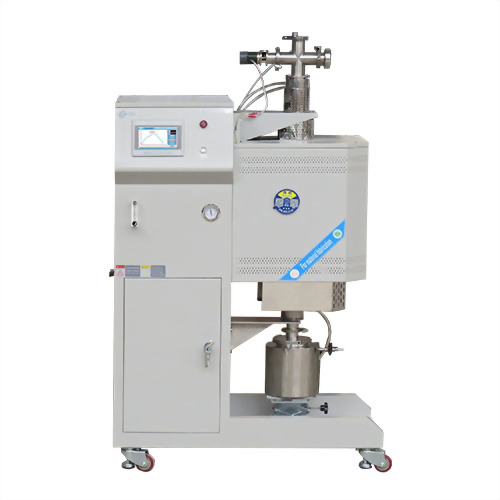

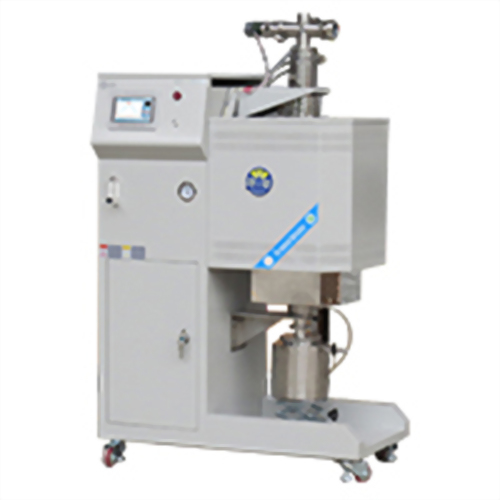

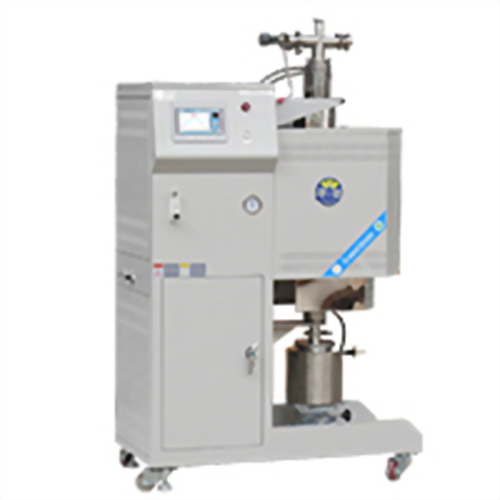

Quenching furnace (vertical type)
Features：
1. MoSi2 heating elements are suspended for easy replacement;
2. Vacuum ceramic fiberboard insulation;
3. RHTV-type tube furnace for vertical operation with support;
4. Type B thermocouple;
5. Power regulation unit equipped with a low-voltage transformer and a thyristor regulator;
6. Temperature limiter for overtemperature protection of the furnace and product;
7. The switchgear with controller is separate from the furnace and installed in a separate vertical cabinet;
8. The electric rotary release mechanism ensures safer quenching and a more stable structure.
|
Specifications |
NBD-LT1700-60TI-200 |
|
Tmax |
1650℃ |
|
Power Supply |
Single-phase 220V 50/60HZ |
|
Rated Power |
5KW |
|
Heating Zone Dimensions |
Φ220 × 210 mm |
|
Furnace Tube Material |
Corundum Tube Φ60 × 1000 mm |
|
Temperature Control Accuracy |
±1℃ |
|
Temperature Measuring Element Type |
Type B Thermocouple，Φ8 × 150 mm |
|
Quenching Tank Inner Dimensions |
Φ130 × 220 mm |
|
Heating Rate |
1℃ / H-20℃ / Min |
|
Gas Inlet and Outlet System |
Φ6.35mm Grade Ba stainless steel tube with internal and external polishing, controlled by solenoid valve |
|

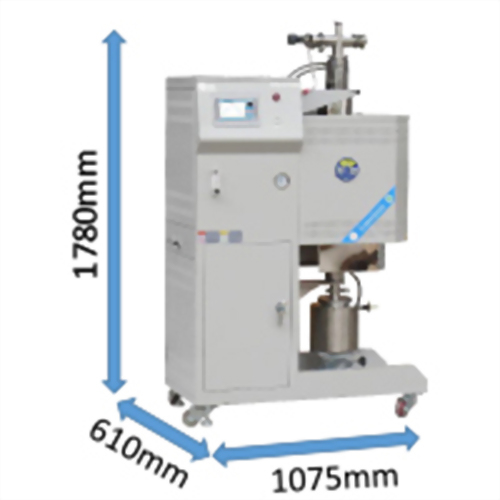

Furnace Dimensions |
L 1075 × H 1780 × D 610 mm |
◎ CE Certified
◎ Brand / NOBODY
