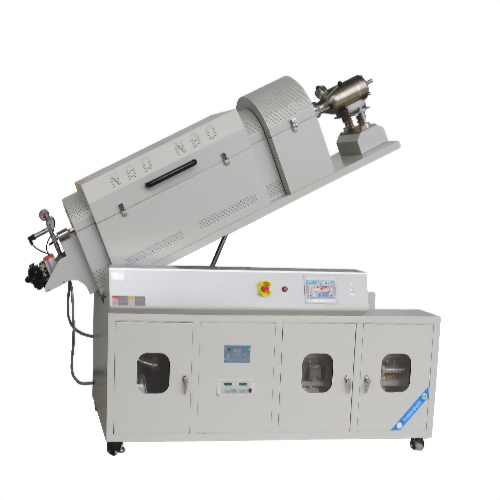

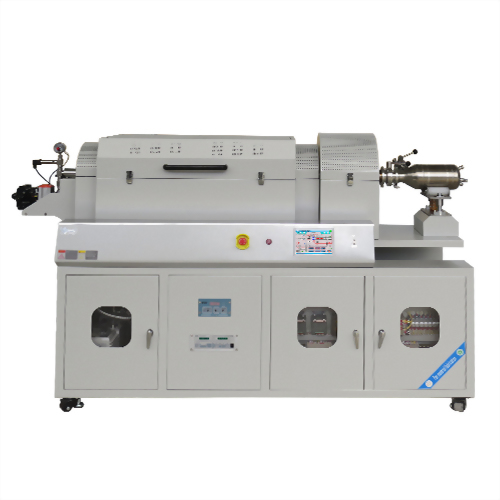

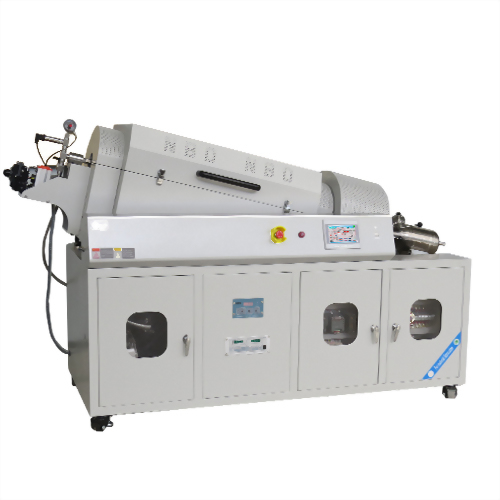

Heat treatment furnace (automatic loading and unloading hydrogen absorbing material type)
Features：
1. The control system utilizes an advanced PLC + touchscreen control system, making operation simple and convenient. The control mathematical model employs advanced PID self-learning fuzzy control, maintaining a temperature control accuracy of ±1°C.
2. This system incorporates multiple protection features to maximize operator and equipment safety. The highly integrated system minimizes operator workload, and all operations can be performed on the touchscreen, greatly facilitating user experience.
3. The high-vacuum rotary tube furnace allows for rapid temperature increases and decreases, and features automatic loading and unloading, facilitating material loading, firing, and monitoring. The automatic rotation of the furnace tube ensures constant stirring of the material within the constant temperature zone, ensuring a more uniform firing.
|
Specifications |
NBD-RT1200-200T22DZ |
|
Electrical Specifications |
Three-phase 380V 50/60HZ |
|
Maximum Temperature |
800℃ （1 hour） |
|
Rated Power |
18.0KW |
|
Temperature Measuring Element |
K-type Thermocouple （400mm） |
|
Heating Zone Dimensions |
φ250 × 870mm |
|
Furnace Tube Material |
310S Stainless Steel |
|
Furnace Tube Effective Working Area |
φ187 × 600mm |
|
Furnace Tube Capacity |
24L |
|
Transfer Tank Capacity |
5L |
|
Material Sintering Angle |
-6 degrees （for 2L of material） |
|
Tilt Angle |
-31 degrees （discharge） to 11.7 degrees （feed） |
|
Furnace Tube Speed |
1 to 4 rpm per minute |
|
Maximum pressure resistance of the furnace tube at room temperature |
5Mpa |
|
Maximum operating pressure resistance of the furnace tube at room temperature |
4Mpa |
|
Ultimate pressure resistance of the transfer tank |
1Mpa |
|
Maximum vacuum level |
8.0 × 10-2Pa |
|

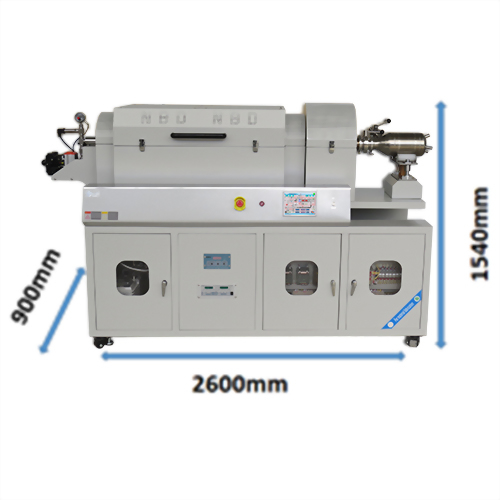

Furnace dimensions |
2600 mm long × 900 mm deep × 1540 mm high |
◎ CE certified
◎ Brand: NOBODY
