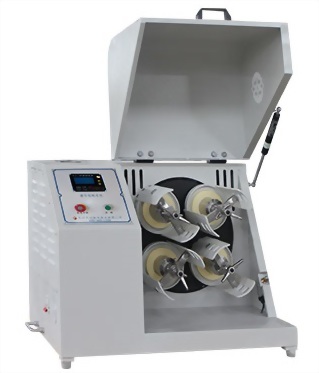

A horizontal planetary ball mill features four horizontally mounted ball mills symmetrically mounted on a vertical planetary disk. The mills lack a fixed flat bottom during their planetary motion. During the grinding process, the grinding balls within the mills are subjected to the centrifugal forces of both revolution and rotation, as well as their own gravity. This helps to enhance the chaotic movement of the balls and material, improving both grinding quality and efficiency. Because the mills lack a fixed flat bottom during rotation, they effectively prevent some materials from sinking to the bottom. The horizontal planetary ball mill offers a simple structure and convenient operation, making it suitable for laboratory experiments with small batches of samples.

Horizontal planetary ball mills are widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, and environmental protection. They are suitable for the production of electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, phosphors, long-lasting luminescent powders, rare earth polishing powders, electronic glass powders, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, disc ceramic capacitors, MLCCs, thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, and Mn-Zn ferrite. The equipment shell is novel and fashionable in design, lean manufactured, exquisite and delicate; the machined parts are made of materials with strict heat treatment process and adopt CNC processing technology, and the transmission gears are made of special materials and precision gears to ensure that the equipment runs smoothly, safely and quietly at high speed.

The grinding tank clamping device is easy to operate, safe and reliable, and adopts a microcomputer touch screen, which is easy to operate and has a simple and intuitive interface. It can realize alternating forward and reverse control and has timing and power-off memory functions.

Ball Mill Specifications：

1. Power Supply: 220V

2. Motor Power/Inverter Power (kW): 0.75

3. Total Run Time (min): 1-9999

4. Forward/Reverse Alternating Run Time: 1-999

5. Speed Control: Variable Frequency Drive

6. Adjustable Speed (Revolution rpm): 35-335

7. Adjustable Speed (Autorotation rpm): 70-670

8. Noise Level ≤ 60dB

9. Weight (kg): Approximately 130

10. Dimensions (mm): 560 x 470 x 730

Compatible Ball Mill Jar Specifications：

1. Size: 4L

2. Compatible Ball Mill Jar Sizes: 250-1000ml

3. Quantity: 4 pieces

4. Note: Optional 50-500ml vacuum ball milling jars are available.

Mark: (CD) TENCAN Co.
