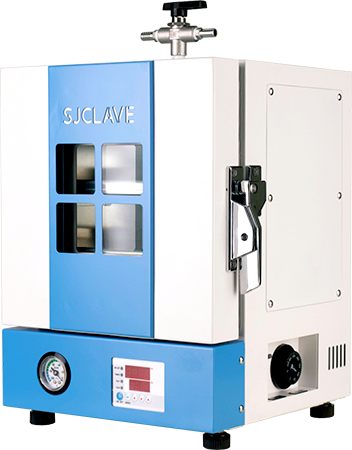

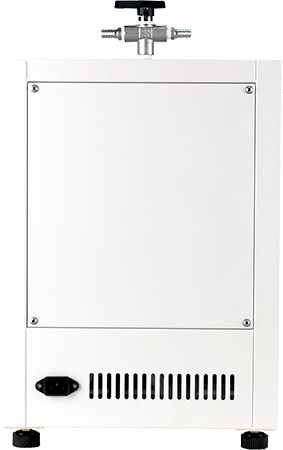

Vacuum Oven SJ-VAC
Features
- Compact desktop design: Ideal for labs with limited space
- Efficient vacuum system: Quickly reduces chamber pressure to prevent sample oxidation
- Precise temperature control: Evenly distributes temperature for reliable experimental results
- Stainless steel interior: Corrosion-resistant, easy to clean, and long-lasting
- Multiple safety features: Over-temperature and leakage protection ensure safe operation
Purpose:
Drying ovens are designed to remove unwanted moisture from samples as quickly as possible within a given timeframe and with minimal temperature fluctuation.They can be used for heating, drying, tempering, testing, aging, sterilization, and other processes.
Application areas:
Research, industry, electronics, biotechnology, medicine, etc.
|
Spec / Model |
SJ-VAC08 |
SJ-VAC27 |
SJ-VAC64 |
|
MAX TEMP |
Max 210℃ |
||
|
OPERATION TEMP. RANGE |
40℃ ~ 200℃ (Less than RT. 25℃) |
||
|
VACUUM RANGE |
0 to 760mmHg |
||
|
DIMENSION INTERNAL (mm) |
200×200×200 |
300×300×300 |
400×400×400 |
|
DIMENSION EXTERNAL (mm) |
318×318×436 |
568×532×777 |
668×632×877 |
|
CAPACITY |
8ℓ |
27ℓ |
64ℓ |
|
MATERIAL INTERNAL |
Stainless Steel (304) with Polishing Finished |
||
|
MATERIAL EXTERNAL |
Steel Plate SS #41 with Powder Heating Coated |
||
|
MOVING CASTER |
Fixed Caster |
||
|
MATERIAL PACKING |
Silicon Rubber Packing |
||
|
TEMP & TIME CONTROLLER |
Digital Microprocess P.I.D. Controller |
||
|
TIME RANGE |
00.00 ~ 99Hr 59Min (or Min-Sec) Selectable Digital Timer |
||
|
HEATER CAPACITY |
400W |
1,200W |
1,950W |
|
HEATER CONTROL |
S.S.R. (Solid State Relay) |
||
|
POWER |
220–230V~, Max 1.8A |
220–230V~, Max 5.4A |
220–230V~, Max 8.8A |
|
SAFETY |
Electric Leakage Breaker, Over Temp. Protection Device |
||
|
SHELVES |
Aluminum 3T × 2ea |
Aluminum 3T × 3ea |
Aluminum 3T × 3ea |
|
INSULATED COMPONENT |
Glass-Wool |
||
