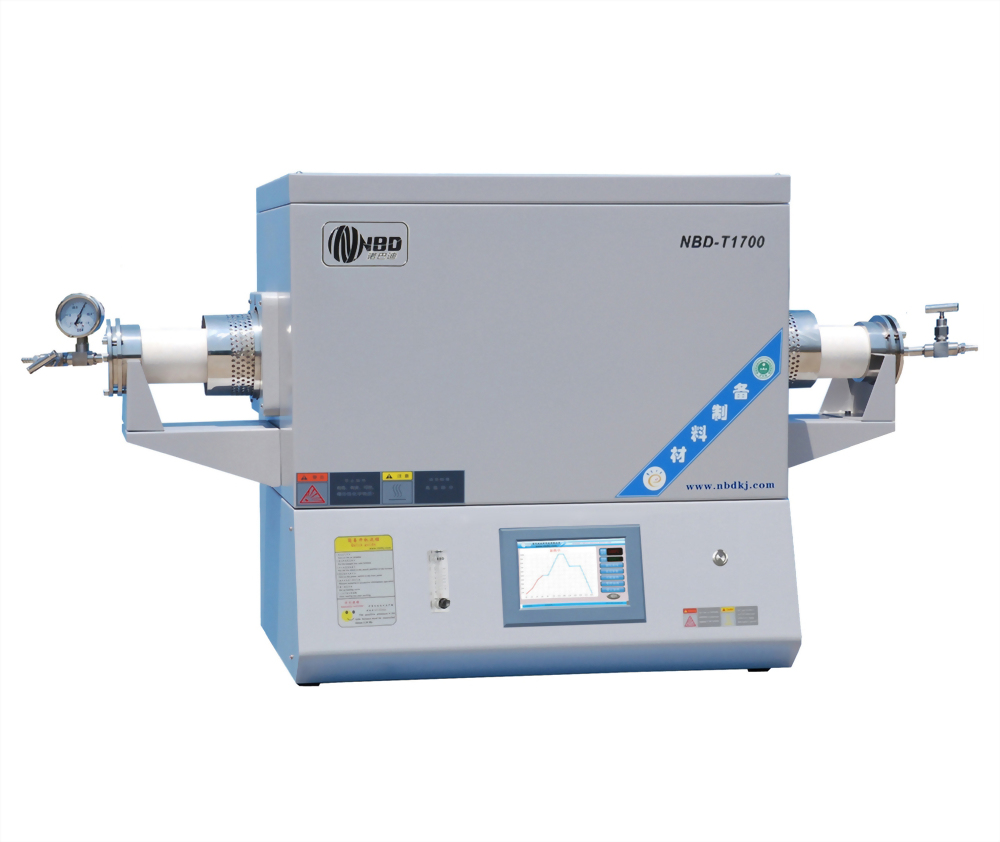

Tubular furnace (extended single temperature zone type) 1700℃
Features：
1. High-purity alumina furnace tubes offer superior corrosion and high-temperature resistance.
2. High-purity Al₂O₃ fiber refractory insulation provides excellent insulation, effectively reducing power consumption.
3. The furnace body utilizes a double-layer air-cooling structure, significantly reducing the surface temperature of the shell.
4. Intelligent PID fuzzy temperature control is implemented, and the 7-inch touchscreen provides centralized control with intuitive display of the time-temperature curve.
|
Product Model |
NBD-T1700-50TI+ |
NBD-T1700-60TI+ |
NBD-T1700-80TI+ |
|
Electrical Specifications |
AC380V 7KW |
||
|
Available Temperature |
1700℃ （<1 hour） |
||
|
Long-Term Operating Temperature Range |
300 ~ 1150℃ |
||
|
Heating Rate |
1℃ / H-20℃ / Min |
||
|
Heating Zone Length |
460 mm（single temperature zone, dual control） |
||
|
Furnace Tube Dimensions |
Φ50 × 1200 mm |
Φ60 × 1200 mm |
Φ80 × 1200 mm |
◎ CE Certified
◎ Brand / NOBODY
