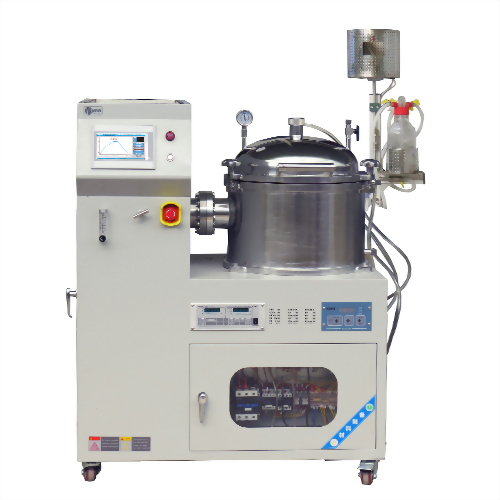

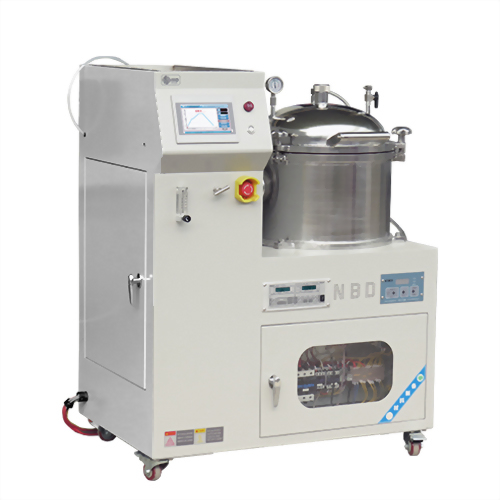

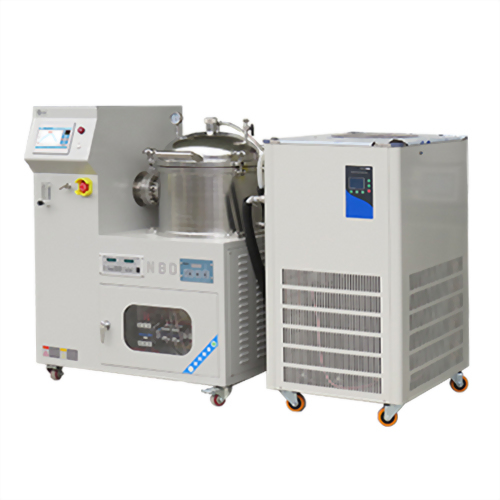

Graphite heating furnace 2650℃
Features：
1. High-purity process space;
2. Equipped with a closed sample loading fixture, it enables stable control of the high vacuum state during powder material sintering;
3. Open sample loading platform design accommodates sintering experiments for various sample shapes;
4. Scientific and rational design easily achieves high vacuum, ultra-high temperature, and low external heat radiation.
|
Model |
NBD-G2700-80TIGF |
|
|
Electrical Specifications |
Three-phase 380V 50/60HZ |
|
|
Heating System |
Normal Operating Temperature |
2650 ℃ |
|
Rated Power |
20 KW |
|
|
Furnace Dimensions |

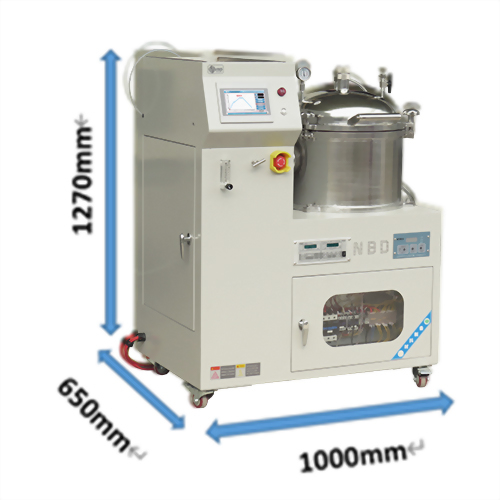

L1000 × H1270 × W650 mm |
|
|
Main Control Heating Rate |
≤ 5 ℃ / min |
|
|
Heating Chamber Dimensions |
120 × 60 × 60 mm |
|
|
Graphite Crucible Effective Volume (Dimensions) |
7.7 ml （50 × 22 × 7 mm） |
|
◎ CE Certified
◎ Brand / NOBODY
