Features and Applications:

● We at Diener Electronics have been manufacturing vacuum systems for 25 years. Our achievement is a unique, flexible chamber system based on extruded aluminum profiles. Three-meter-long profiles are cut to the required length and equipped with bolt-on rear walls and doors. Slits are provided on the side walls of the profiles for easy insertion of product carriers.

● This system offers significant advantages:

    ＞ Maximum flexible length of 3 meters

    ＞ Very fast delivery, as only the door and rear wall need to be replenished

    ＞ Low cost

    ＞ Lightweight

    ＞ No complex product carrier installation required

    ＞ Color selection through anodizing

    ＞ Excellent thermal conductivity

    ＞ Enables highly clean processes, such as in the semiconductor industry

    ＞ Simple and convenient operation

    ＞ No soldering required; parts can be easily joined

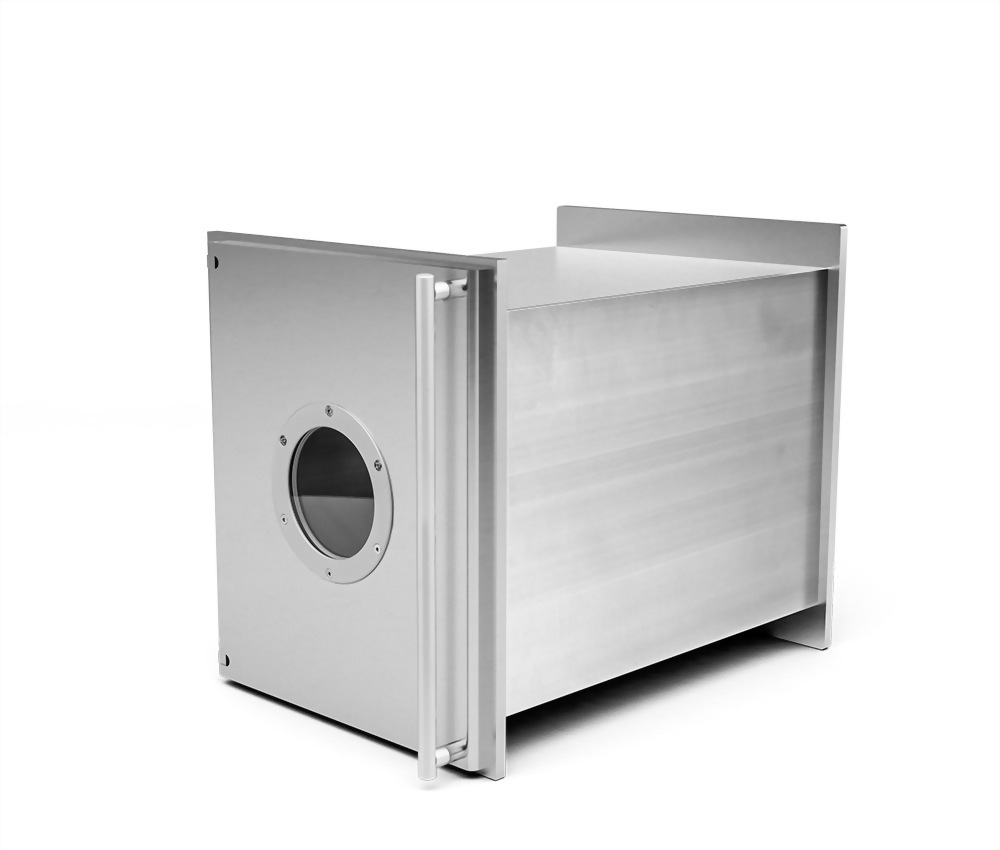

● Our VC P400x400 HV vacuum chamber is specifically developed for high vacuum applications and is manufactured using a unique, flexible chamber system based on extruded aluminum profiles. Unlike our standard VC P400x400, the VC P 400x400 HV has no slots on its side walls.

Specifications:

● Internal Dimensions:

    ＞Length: Maximum 3000 mm (Standard: 625 mm)

    ＞Width: 400 mm

    ＞Height: 400 mm

    ＞Volume: Approx. 100 liters

● Connectors:

    ＞4 × KF 16

    ＞2 × KF 40

    ＞1 × ISO K 160

● Door: Hinged door with viewing mirror

Brand: Diener / Germany, CE
