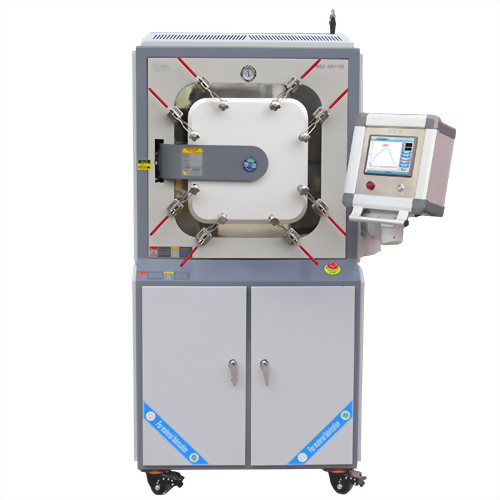

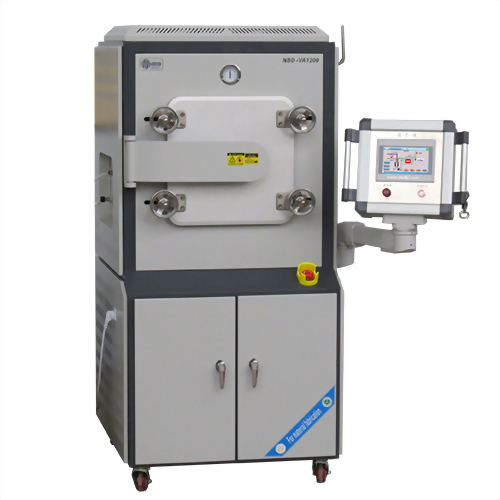

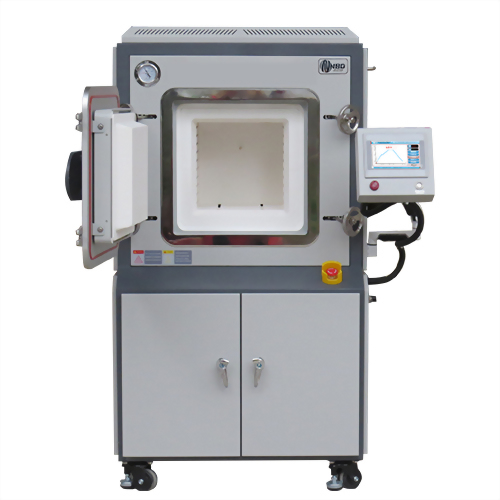

Vacuum box furnace (large controlled atmosphere type)

Model : NBD-VA1200-20TI / NBD-VA1500-30TI / NBD-VA1700-30TI

Features:

1. A double-layer water-cooling structure significantly reduces the shell's surface temperature.

2. High-purity heating elements with excellent acid and corrosion resistance.

3. Refractory insulation materials manufactured using a vacuum forming process minimize heat loss, effectively reducing equipment power usage.

4. An integrated inner liner design ensures system sealing.

5. The NBD-101EP embedded operating system features an English-Chinese compatible graphical interface, a 7-inch color touchscreen input screen, intelligent human-computer interaction mode, real-time heating power display, and nonlinear temperature correction. It also provides automatic test report generation and unlimited data export.

Product Model

NBD-VA1200-20TI

NBD-VA1500-30TI

NBD-VA1700-30TI

Electrical Specifications

AC220V  4KW

AC380V  6KW

AC380V  12KW

Achievable Temperature

1150℃

1450℃

1650℃

Continuous Temperature

1100℃ Continuous

1400℃ Continuous

1600℃ Continuous

Furnace Dimensions

200 × 200 × 300 mm

300 × 300 × 400 mm

300 × 300 × 400 mm

System Vacuum

≤100 Pa

Recommended Heating Rate

≤20℃ / min

CE Certified

◎ Brand / NOBODY
