Features：

1. Furnace tubes made of high-purity alumina offer superior corrosion and high-temperature resistance.

2. High-purity Al₂O₃ fiber refractory insulation provides excellent insulation, effectively reducing power consumption.

3. The furnace body utilizes a double-layer air-cooling structure, which helps quickly reduce the shell surface temperature.

4. Intelligent PID fuzzy temperature control is implemented, and the 7-inch touchscreen provides centralized control and intuitive display of the time-temperature curve.

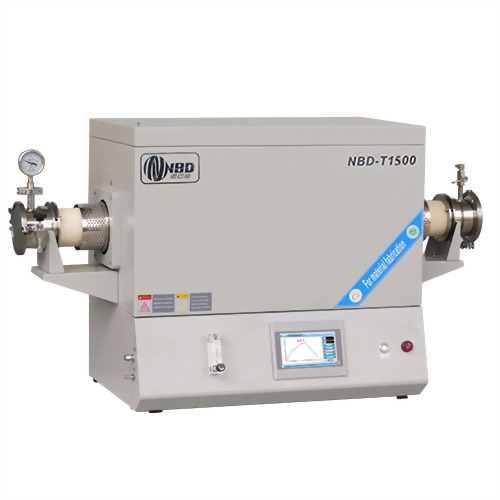

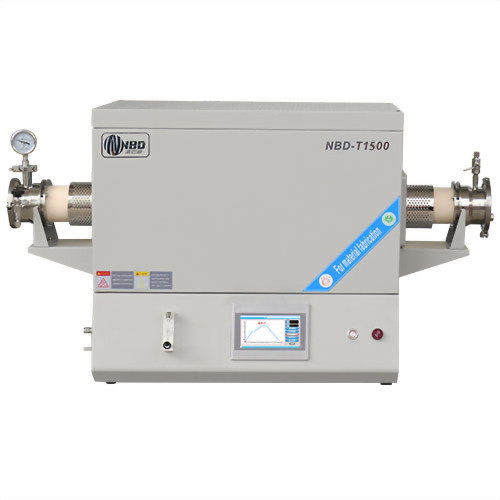

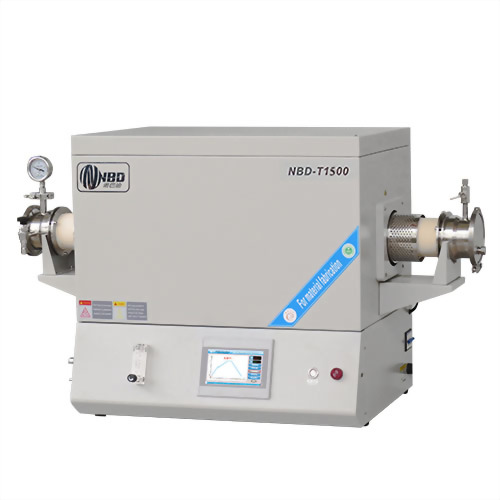

Equipment Model：NBD-T1500-100T2GF

Power Supply：Single-phase 220V 50/60Hz

Rated Power：6kW

Temperature Measuring Element Type：S-type Thermocouple φ8 × 205 mm

Tmax：1450°C

Heating Zone Dimensions：First Zone: φ100 × 225 mm    Second Zone: φ100 × 225 mm

Furnace Tube Dimensions：φ100 × 1200 mm

External Dimensions：Length 1414 mm × Height 720 mm × Depth 514 mm

Heating Rate：1°C/hour - 20°C/minute

Weight：350kg

◎ CE Certified

◎ Brand: NOBODY
