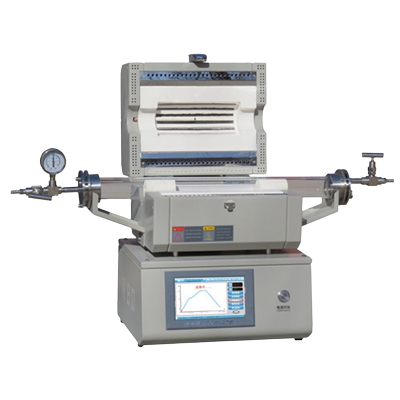

Tubular Furnace (miniature)
Furnace Mode：Open
Display：LED
Maximum Temperature：1200°C
Operating Temperature：≤1150°C
Furnace Tube Material：High-Purity Quartz
Furnace Tube Diameter：50mm
Furnace Tube Length：450mm
Control Mode：Intelligent PID
Over-temperature alarm, overcurrent protection, and burnout warning.
◎CE Certified.
◎Brand: NOBODY
Furnace Mode：Open Type
Furnace Tube Length：600mm/(450mm)
Display Mode：LED Display
Sealing Method：Vacuum Flange
Furnace Material：Imported Fiber
Air Tightness：4.03×10-3Pa
Heating Element：Imported Alloy Heating Wire
Control Mode：Intelligent PIDTemperature Limit：1200°C
Temperature Control Accuracy：±1°C
Operating Temperature：≤1150°CTemperature Curve：Multiple "Time-Temperature Curves" (configurable)
Heating Rate：≤30°C (Recommended: 10°C/min)
Pre-stored Curve：One pre-stored temperature curve is availableHeating Zone：Single Zone
Temperature Measuring Element：K-Type Thermocouple
Zone Length：200mmPower Supply：220V 50/60Hz
Constant Temperature Zone Length：100mm
Power：1.2kW
Furnace Tube Material：High-purity quartz
Dimensions：380×320×430mm
Furnace Tube Diameter：50mm
Included Accessories：Quartz furnace tube, vacuum flange, instruction manual
◎CE Certified.
◎Brand: NOBODY
