Applications:

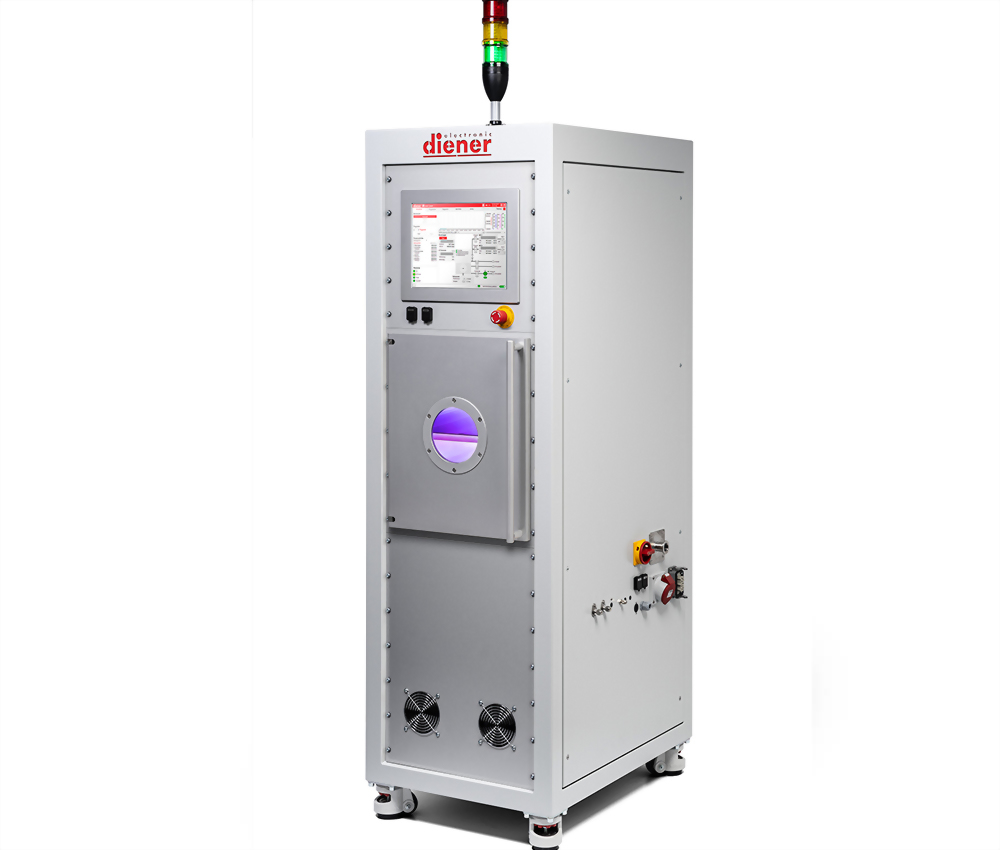

● The Tetra 100 plasma system is primarily used in the following fields: analysis (SEM, TEM), archaeology, automotive, life sciences, elastomer technology, electrical engineering, electron microscopy, precision engineering, research and development, semiconductor technology,

small-batch production, plastics technology, medical engineering, microsystems technology, solar cell technology, textile technology, etc.

Specifications:

● Chamber volume: Approximately 100 liters

● Housing:

    > Width 600 mm

    > Height 1700 - 2100 mm

    > Depth 800 mm

● Plasma generator:

    > 80 kHz / 0 - 1000 W; 0 - 3000 W

    > 13.56 MHz / 0 - 300 W; 0 - 600 W; 0 - 1000 W

    > 2.45 GHz / 0 - 1000 W

● Control:

    > Basic PC

    > Fully computerized

● Application examples:

    > Laboratory/Small batch production

    > Production/Fully automated

● Vacuum chamber: Rectangular stainless steel/aluminum with hinged door: W 400 mm x H 400 mm x D 625 mm, maximum depth 3 meters

Brand: Diener / Germany, CE
