Applications:

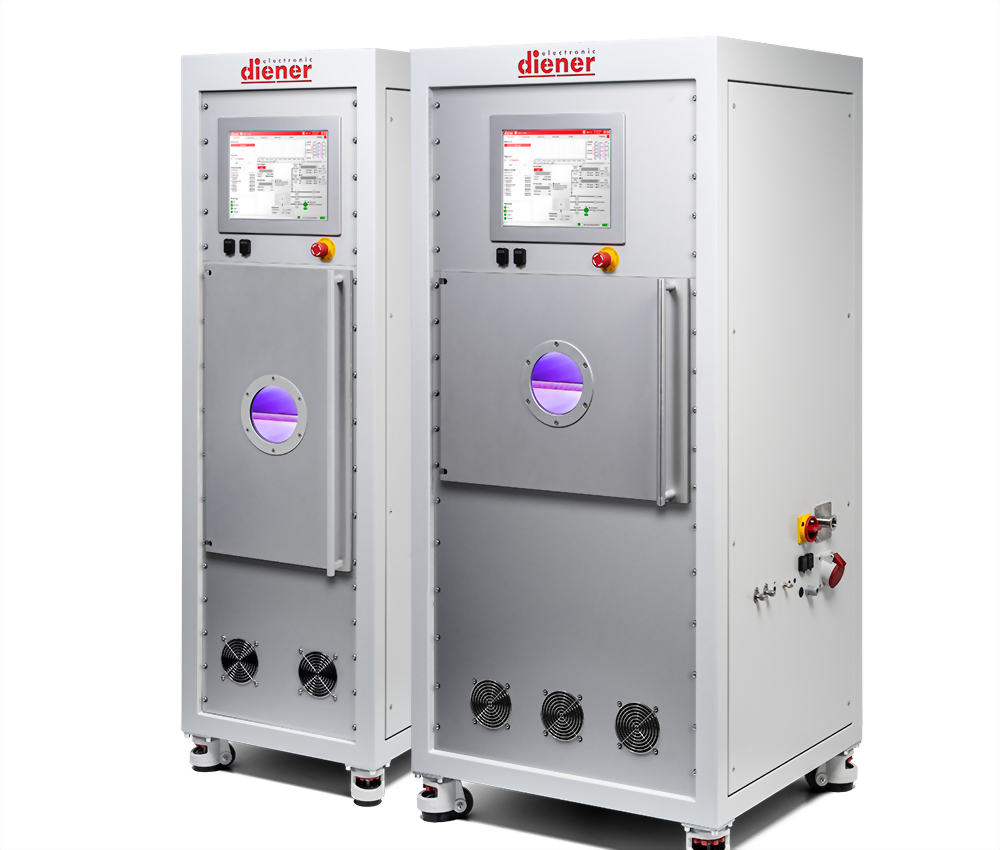

● The Tetra 150 plasma system is primarily used in the following fields: archaeology, automotive, life sciences, elastomer technology, electrical engineering, electron microscopy, precision engineering, research and development, semiconductor technology, small-batch production, plastics technology, medical engineering, microsystems technology, solar cell technology, textile technology, etc.

Specifications:

● Chamber volume: Approximately 150 liters

● Housing:

    > Width 600 mm

    > Height 2100 mm

    > Depth 800 mm

● Plasma generator:

    > 80 kHz / 0 - 1000 W; 0 - 3000 W

    > 13.56 MHz / 0 - 300 W; 0 - 600 W; 0 - 1000 W

    > 2.45 GHz / 0 - 1000 W

● Plasma control:

    > Basic PC

    > Full PC

● Application Examples:

    > Laboratory/Small Batch Production

    > Production/Fully Automated

● Vacuum Chamber:

    > Aluminum rectangular chamber with hinged door, maximum depth 3 meters

        1. 400 mm W x 600 mm H x 625 mm D

        2. 600 mm W x 400 mm H x 625 mm D

    > Stainless Steel rectangular chamber with hinged door

        1. 400 mm W x 600 mm H x 625 mm D

Brand: Diener / Germany, CE
