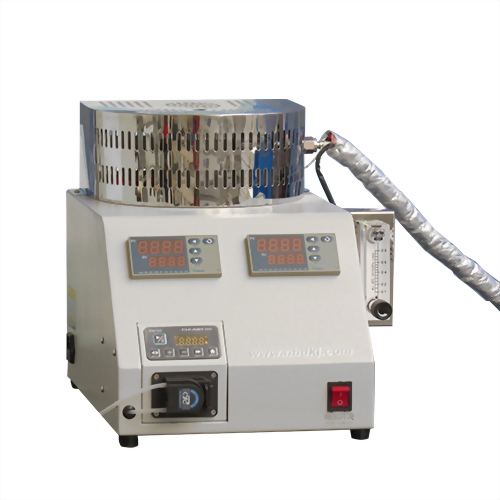

Steam generator (for tubular furnace)
Features：
1. Unique vaporization structure ensures stable water vapor generation;
2. Adjustable vaporization temperature;
3. Controllable liquid flow rate;
4. Condensation system prevents vapor condensation and backflow;

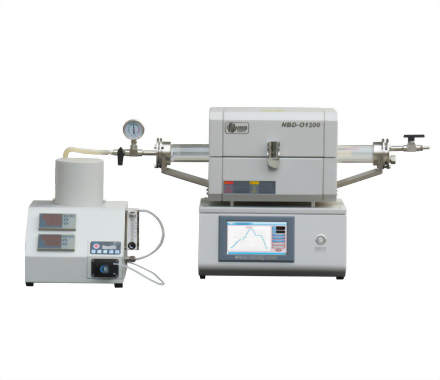

5. Automatic liquid inlet and easy installation. Compatible with tubular furnaces from various manufacturers.
|
Product Model |
NBD-WTS101 |
|
Electrical Specifications |
AC220V 400W |
|
Tmax |
200℃ ~ 400℃ |
|
High-Precision Peristaltic Pump |
1. Speed Range：0.1-100 rpm (forward and reverse reversible) 2. Speed Resolution：0.1 rpm 3. Speed Control：Membrane Button 4. Display：4-digit LED to indicate current speed or flow rate 5. Reinforced PP material, corrosion-resistant 6. Flow Rate：0.04-13 ml/min 7. Full-speed button for quick emptying and refilling
8. Power-off memory function to instantly save operating parameters.
|
|
Control System |
1. Fuzzy PID temperature control, bright digital display 2. Programmable multi-stage "time-temperature" curve settings
3. Features such as over-temperature alarm, burnout warning, and leakage protection.
|
◎ CE certified
◎ Brand：NOBODY
