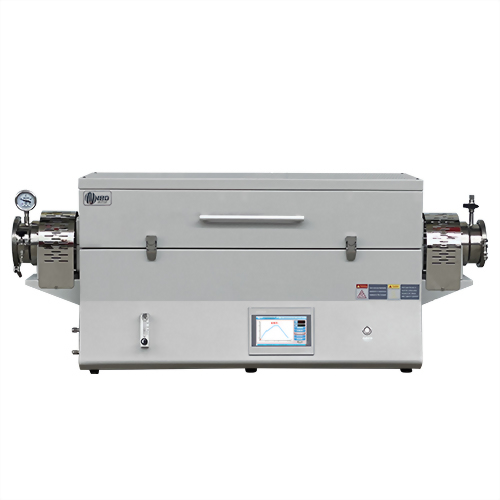

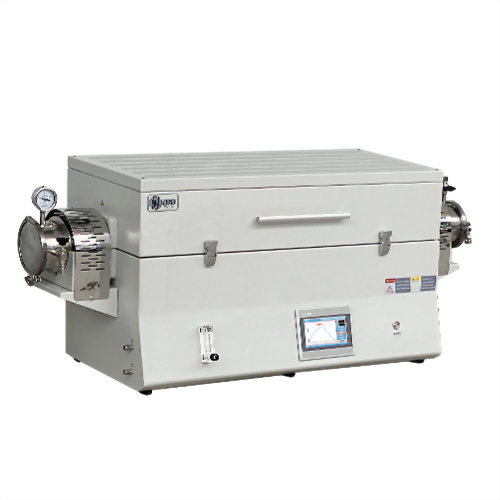

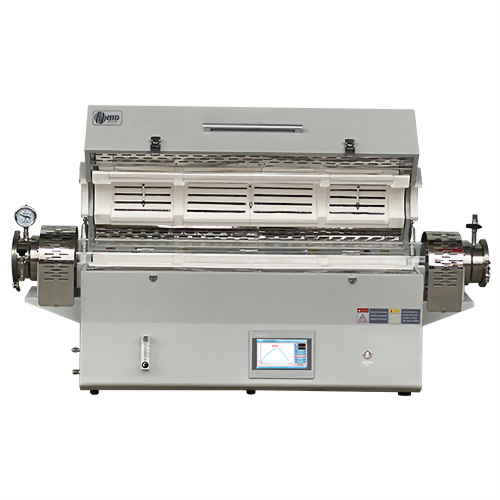

Tubular furnace (three temperature zone type) 1200℃
Features：
1. Double-layer steel construction;
2. High-purity Al2O3 fiber refractory insulation for maximum energy savings;
3. High-purity alumina coating on refractory ceramics extends service life;
4. Alumina tube plugs allow you to create a customized temperature gradient within the tube.
|
Product Model |
NBD-O1200-50T3GF |
NBD-O1200-60T3GF |
NBD-O1200-80T3GF |
NBD-O1200-100T3GF |
||
|
Electrical Specifications |
AC380V 2KW+4KW+2KW |
|||||
|
Achievable Temperature |
1200℃ （<1 hour） |
|||||
|
Long-Term Operating Temperature Range |
300 ~ 1150℃ |
|||||
|
Heating Rate |
≤20℃ / minute |
|||||
|
Heating Zone Length |
200 mm + 400 mm + 200 mm （Three-temperature, three-control: Each temperature zone can operate independently） |
|||||
|
Furnace Tube Dimensions |
Φ50 × 1400mm |
Φ60 × 1400mm |
Φ80 × 1400mm |
Φ100 × 1400mm |
||
◎ CE Certified
◎ Brand / NOBODY
