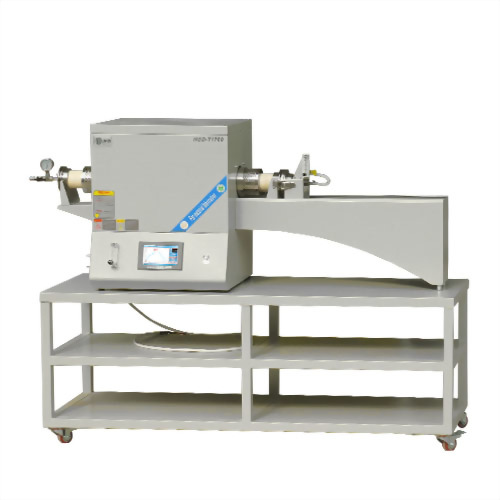

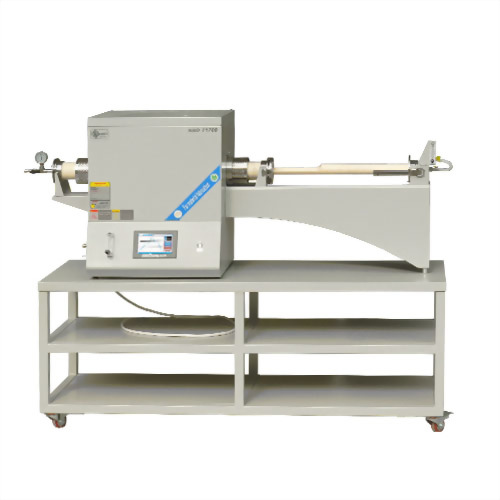

Heat treatment furnace (tubular push-pull type)

Model : NBD-T1700-80TIZ

Features:

1. Furnace tubes made of high-purity alumina offer superior corrosion and high-temperature resistance.

2. High-purity Al₂O₃ fiber refractory insulation provides excellent insulation, effectively reducing power consumption.

3. The furnace body utilizes a double-layer air-cooled structure, significantly reducing the surface temperature of the shell.

4. Intelligent PID fuzzy temperature control is implemented, and a 7-inch touchscreen displays centralized control, visually displaying the time-temperature curve.

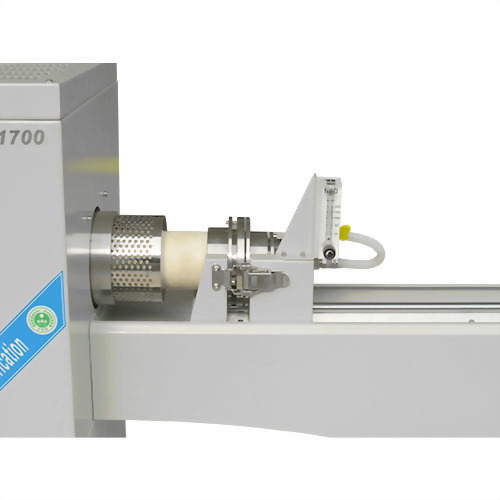

5. A sliding rail-type tubular loading platform is used for loading and unloading, making loading and unloading quick and easy.

Product Model

NBD-T1700-80TIZ

Electrical Specifications

AC220V  4.5KW

Available Temperature

1700 <1小時)

Long-Term Operating Temperature Range

300 ~ 1650

Available Heating Rate

≤20 / minute

Heating Zone Length

310 mm

Furnace Tube Dimensions

Φ80 × 1000 mm

Material Platform Dimensions

Φ50 × 660 mm  Bevel Cut 230 mm

◎ CE Certified

◎ Brand / NOBODY
