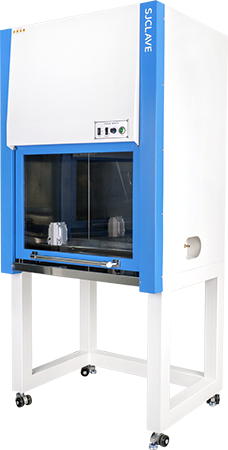

Laminar Flow Cabinet (Vertical) SJ-VCB
Features
- High-Efficiency Filtration System: Equipped with a HEPA H14 filter with a filtration efficiency of ≥99.995%, effectively trapping particulates and bacteria.
- Laminar Clean Airflow: A vertical airflow design provides uniform, downward clean airflow, protecting samples and operators.
- User-Friendly Design: The workspace is constructed of corrosion-resistant, easy-to-clean stainless steel, and is located at an ergonomic height.
- Safety Control: Equipped with intelligent air speed monitoring and an audible and visual alarm system to ensure stable operation and personnel safety.
- Low-Noise Operation: The silent fan design ensures comfortable and quiet operation even during extended periods of operation.
Applications:
Sterility testing, cell culture, drug development, medical testing, sterility testing in biopharmaceutical processes, etc.
|
Spec / Model |
SJ-VCB900 |
SJ-VCB1200 |
SJ-VCB1500 |
|
AIR CIRCULATION |
Forced Convection |
||
|
DIMENSION INTERNAL (mm) |
740x560x700 |
1,040x560x700 |
1,340x560x700 |
|
DIMENSION EXTERNAL (mm) |
900x733x1,900 |
1,200x733x1,900 |
1,500x733x1,900 |
|
MATERIAL INTERNAL |
Stainless Steel (304) With Polishing Finished |
||
|
MATERIAL EXTERNAL |
Steel Plate With Powder Heating Coated |
||
|
MAIN FILTER |
HEPA Filter 0.3㎛ - 99.97% Efficiency |
||
|
PRE FILTER |
Efficiency Nylon Filter |
||
|
PURITY |
Below Class 100 |
||
|
DOOR TYPE |
Tempered Glass By Weight Balance |
||
|
MOVING CASTER |
ACT-400S |
||
|
MATERIAL PACKING |
Silicon Rubber Packing |
||
|
ILLUMINATION FL LAMP |
15W x 1ea |
30W x 1ea |
32W x 1ea |
|
UL LAMP |
15W x 1ea |
30W x 1ea |
40W x 1ea |
|
POWER |
220V |
||
|
OPTION |
Suction System |
||
