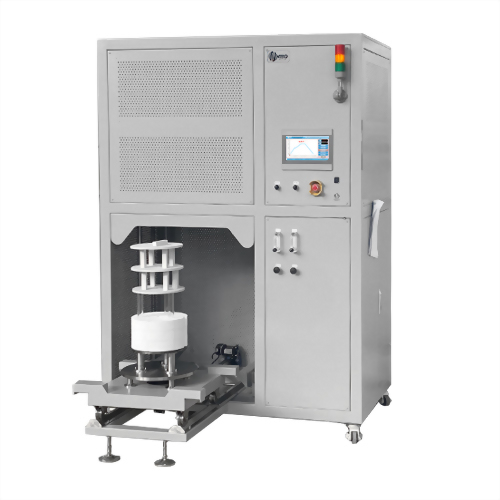

Vacuum high temperature furnace (bottom loading clean type)
Features：
1. Scheduled sintering function: Configurable sintering time and automatic execution of pre-stored sintering processes.
2. Automatic calibration of the furnace's motion track origin ensures safe and smooth loading and unloading.
3. One-touch loading and unloading for simple and efficient operation.
4. Non-linear temperature compensation ensures accurate real-time temperature monitoring.
5. Adjustable furnace high-temperature ramp-down rate maximizes efficiency while ensuring reliability in experiments and production.
6. A built-in gas preheating system ensures highly stable temperature field, ensuring material safety and reliability in experiments and production.
7. High-purity Al2O3 fiber refractory insulation provides excellent insulation and effectively reduces power consumption.
8. Circular heating elements surround the furnace chamber, encircling the quartz liner 360 degrees for improved temperature uniformity.
9. The high-purity quartz furnace cover, quartz liner, and highly sealed structure ensure high cleanliness levels within the working chamber.
|
Specifications |
NBD-VAHB1200-500TP3D2F |
|
|
Power Supply |
Three-phase 380V 50/60HZ |
|
|
Rated Power |
16.5KW |
|
|
Number of Temperature Zones |
Two-point Temperature Control |
|
|
Heating Structure |
Ring Heating Bell Type + Top Auxiliary Heating |
|
|
Heating Element Material |
HRE High-temperature Alloy Wire |
|
|
Temperature Measuring Element |
K-type Thermocouple φ2 × 420 mm |
|
|
Tmax |
1200℃ |
|
|
Rated Temperature |
1100℃ |
|
|
Temperature Control Accuracy |
± 1℃ |
|
|
Recommended Heating Rate |
≤10℃ / min |
|
|
Furnace Temperature Zone Dimensions |
φ350 mm × 320 mm × 2 （2 Temperature Zones） |
|
|
Quartz Shield Dimensions |
φ300 × 780 mm |
|
|
Three-layer Quartz Tray Diameter |
φ260 mm （100mm Spacing） |
|
|
Maximum Sample Size |
φ200 × 220 mm |
|
|
Furnace Dimensions |
Length 1460 mm × Height 2100 mm × Depth 1360 mm |
|
|
Varabiner Flowmeter |
0.5-8L / min |
|
|
Furnace Weight |
Approximately 610 kg |
|
|
Temperature Accuracy |
± 1℃ |
|
|
Heating Element |
Image: 150 × 150 |
Mo-doped Fe-Cr-Al alloy |
◎ Brand: NOBODY
