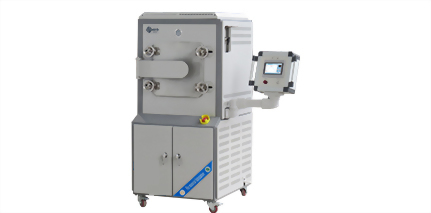

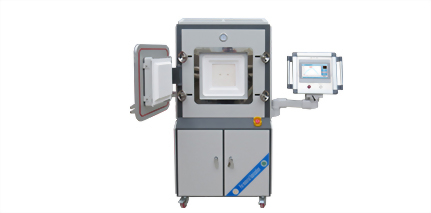

High temperature vacuum box furnace (atmosphere controllable)
Features：
1. A double-layer water-cooling structure significantly reduces the shell's surface temperature.
2. High-purity heating elements with excellent acid and corrosion resistance.
3. Refractory insulation materials manufactured using a vacuum forming process minimize heat loss, effectively reducing equipment power usage.
4. An integrated inner tank design ensures system sealing.
5. Touchscreen operation with intuitive temperature curve display.
6. Gas control options include either a float flowmeter or a mass flowmeter controller.
|
Product Model |
NBD-VA1200-20TI |
NBD-VA1500-22TI |
NBD-VA1700-22TI |
|
Electrical Specifications |
AC220V 4KW |
AC380V 6KW |
AC380V 7KW |
|
Achievable Temperature |
1150℃ |
1450℃ |
1650℃ |
|
Continuous Temperature |
1100℃ （Continuous） |
1400℃ （Continuous） |
1600℃ （Continuous） |
|
Heating Rate |
≤20℃ / min |
||
|
System Vacuum |
≤100 Pa |
||
|
Furnace Dimensions |
200 × 200 × 300 mm |
220 × 220 × 300 mm |
220 × 220 × 300 mm |
◎ CE Certified
◎ Brand / NOBODY
