Features and Applications:

1. Enhance the performance, durability, and aesthetics of your products with Diener electronics' atmospheric pressure plasma systems, an innovative and environmentally friendly technology. This process uses cold plasma via a plasma nozzle (plasma jet) to improve material properties. Surface pretreatment using atmospheric pressure plasma technology is time-saving, cost-effective, and delivers excellent results.

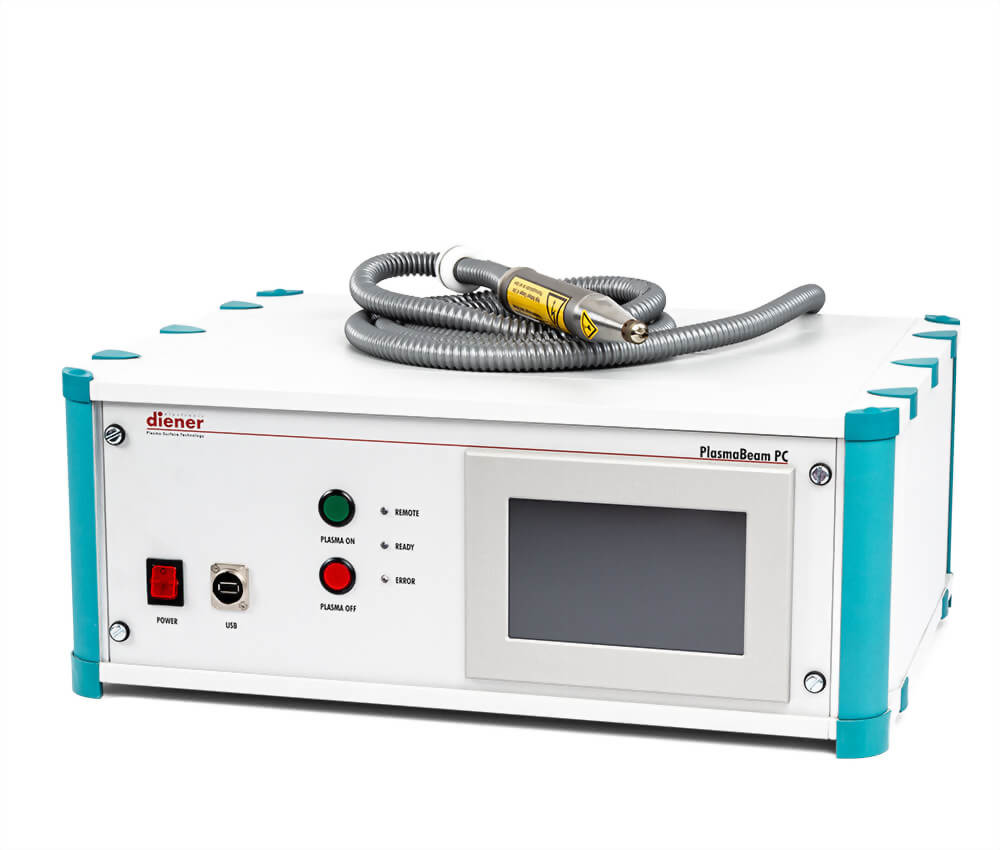

    1.2. PlasmaBeam PC - A new plasma processor with direct plasma parameter visualization, suitable for surface cleaning and activation in the following fields: plastics technology, automotive, electrical engineering, elastomer technology, precision engineering, small-batch production, microsystems technology, medical engineering, solar cell technology, research and development, semiconductor technology, optics, and more. It enables you to meet the highest requirements of the automotive and electrical industries and document your processes.

Specifications:

● Processing Width: 8 - 10 mm

● Power Supply:

    > Width 562 mm

    > Height 210 mm

    > Depth 420 mm

● Plasma Generator: Approximately 40 kHz / 300 W

● Operation:

    > Manual: Via buttons/touchscreen on the front panel

    > Semi-automatic: Remote control via remote connector on the rear panel

● Usage Examples

    > Laboratory/Small Batch

    > Production/Fully Automatic

● Plasma Head:

    > Maximum Ø 32 mm

    > Length 210 mm

    > Weight Approximately 0.5 kg

    > Cable Length 3 m

Brand: Diener / Germany, CE
