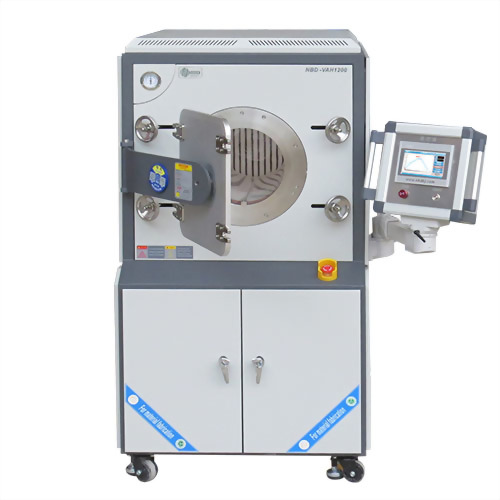

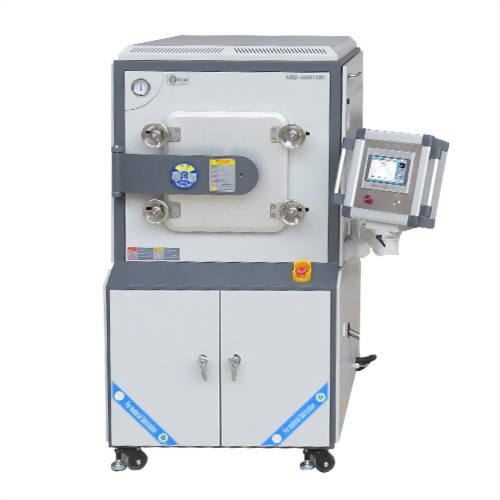

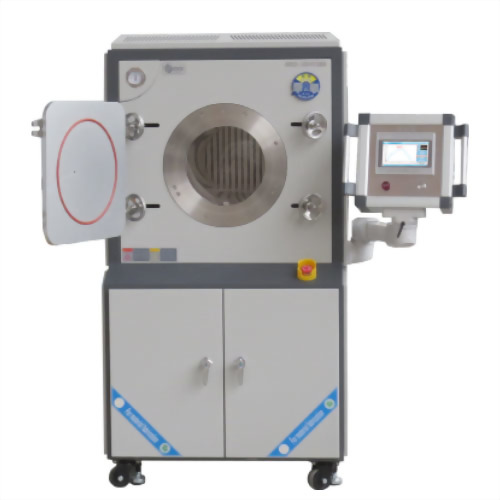

Vacuum high temperature furnace (atmosphere vertical clean type)

Model : NBD-VAH1200-30TIF

Features:

1. High-purity quartz inner chamber enables high-vacuum experimental conditions;

2. Wrap-around heating design ensures fast heating, accurate temperature control, and uniform temperature distribution;

3. Suitable for both vacuum and atmosphere sintering;

4. Stable and reliable control, easy operation, and comprehensive safety measures;

5. Advanced PID self-learning energy control for high temperature control accuracy and comprehensive safety measures;

6. Internet of Things (WIFI) functionality allows for remote monitoring and operation via mobile phone or computer;

7. Data storage function saves key sintering parameters for up to 30 days (operated 8 hours per day);

8. Recipe function allows for pre-storage of 20 recipes;

9. Network functionality via RJ45 port and system connection/IP interface, allowing connection to the software interface using the system-installed software program.

Product Model

NBD-VA H1200-30TIF

Electrical Specifications

AC380V  10KW

Heating Element

High-quality iron-chromium-aluminum alloy wire

Temperature Control Accuracy

± 1℃

Temperature Measuring Element Type

K-type thermocouple

Maximum Temperature

1100℃

Heating Zone Dimensions

High-purity quartz tube φ 300 × 690 mm

Furnace Dimensions

L 1100 × D 1100 × H 1650 mm

Recommended Heating Rate

≤10℃ / minute

System Vacuum

≤10 Pa

CE Certified

◎ Brand / NOBODY
