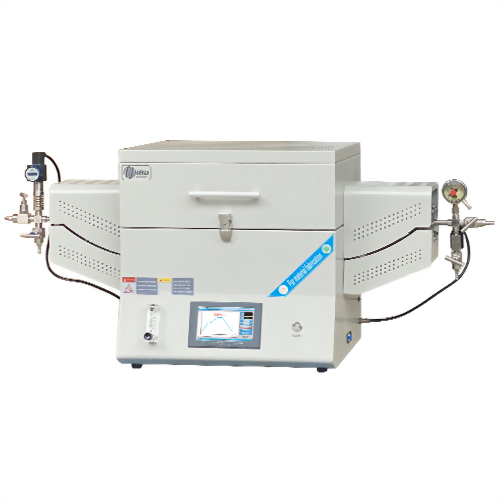

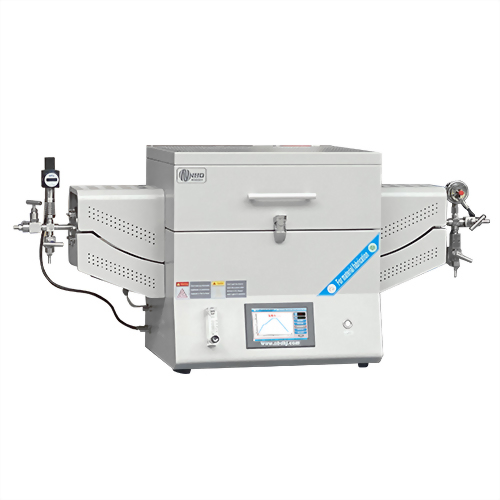

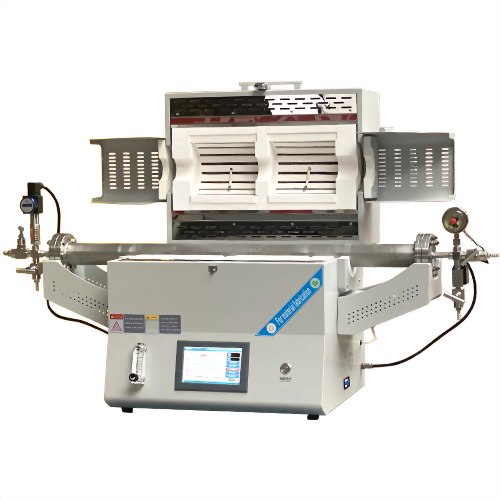

Tubular furnace (dual temperature zone high pressure type)
Features：
1. Three-layer safety protection ensures peace of mind during work.
2. High-pressure ring heater ensures uniform temperature distribution.
3. Modular structure ensures durability and easy maintenance.
4. Voltage stabilization for safety and reliability.
5. One-touch operation for ease of use and 15 pre-stored working curves.
6. Real-time sintering temperature and power monitoring for safety and energy conservation.
|
Product Model |
NBD-HP1200-3660T22Y-150 (36mm ID, 60mm OD) |
||||||||||
|
Tmax |
1200℃ |
||||||||||
|
Electrical Specifications |
AC220V 50/60HZ |
||||||||||
|
Temperature Control Accuracy |
±1℃ |
||||||||||
|
Rated Power |
4.0KW |
||||||||||
|
Sensor Type |
K-Type Thermocouple |
||||||||||
|
Tmax |
1160℃ |
||||||||||
|
Long-Term Operating Temperature Range |
300 ~ 1100℃ |
||||||||||
|
Furnace Tube Dimensions |
60 × 1030 mm |
||||||||||
|
Furnace Body Dimensions |
1300 mm L × 550 mm D × 610 mm H |
||||||||||
|
Heating Rate |
1℃ / H-20℃ / Min |
||||||||||
|
Temperature and Allowable Pressure |
The temperature depends on the gas pressure. Please refer to the table below for details：
(Raise the temperature first, then slowly introduce gas. Do not apply the required pressure all at once. The pressure will increase as the temperature rises).
High-temperature and high-pressure tubing is a consumable component. Please replace it immediately if you notice any deformation.
|
◎ CE Certified
◎ Brand / NOBODY
