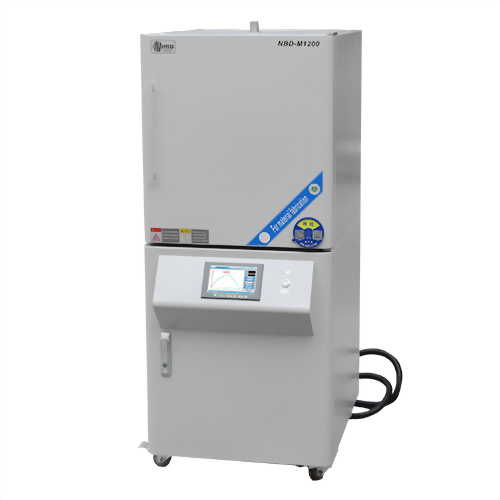

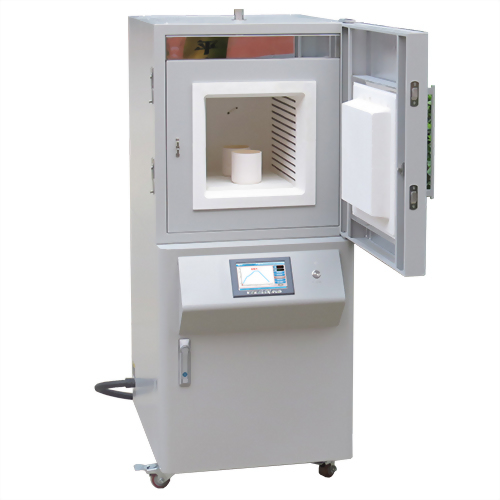

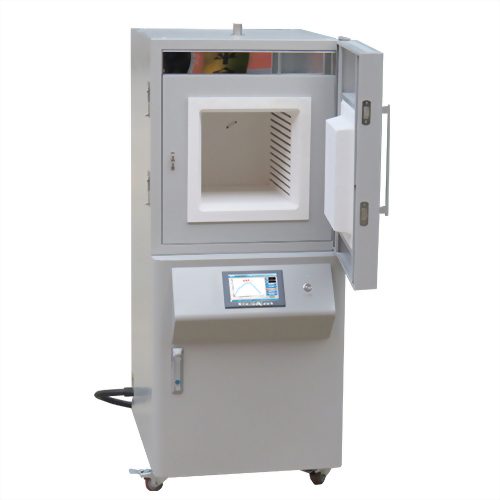

High temperature furnace (large capacity medium temperature box type)
Features：
1. The furnace chamber is moderately sized, suitable for heat treatment of a variety of materials.
2. Refractory insulation materials are manufactured using a vacuum forming process, minimizing heat loss and effectively reducing equipment power consumption.
3. Modular construction ensures durability and ease of maintenance.
4. An exhaust chimney is installed on the furnace roof to effectively remove volatiles generated during the sintering process.
5. Touchscreen operation provides intuitive temperature curve display.
|
Product Model |
NBD-M1200-30TI |
NBD-M1200-40TI |
|
Electrical Specifications |
AC380V 9KW |
|
|
Available Temperature |
1200℃ （<1 hour） |
|
|
Continuous Temperature |
1100℃ （Continuous） |
|
|
Available Heating Rate |
≤20℃ / minute |
|
|

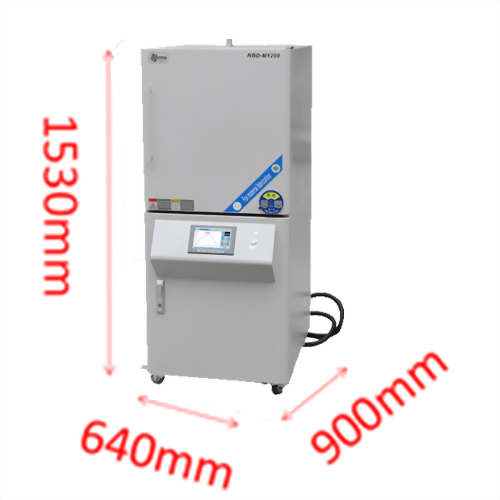

Furnace Dimensions |
300 × 300 × 400 mm （36L） |
400 × 400 × 500 mm （80L） |
◎ CE Certified
◎ Brand / NOBODY
