Features and Applications：

● Compact – portable, versatile, and cost-effective – perfect for your lab.

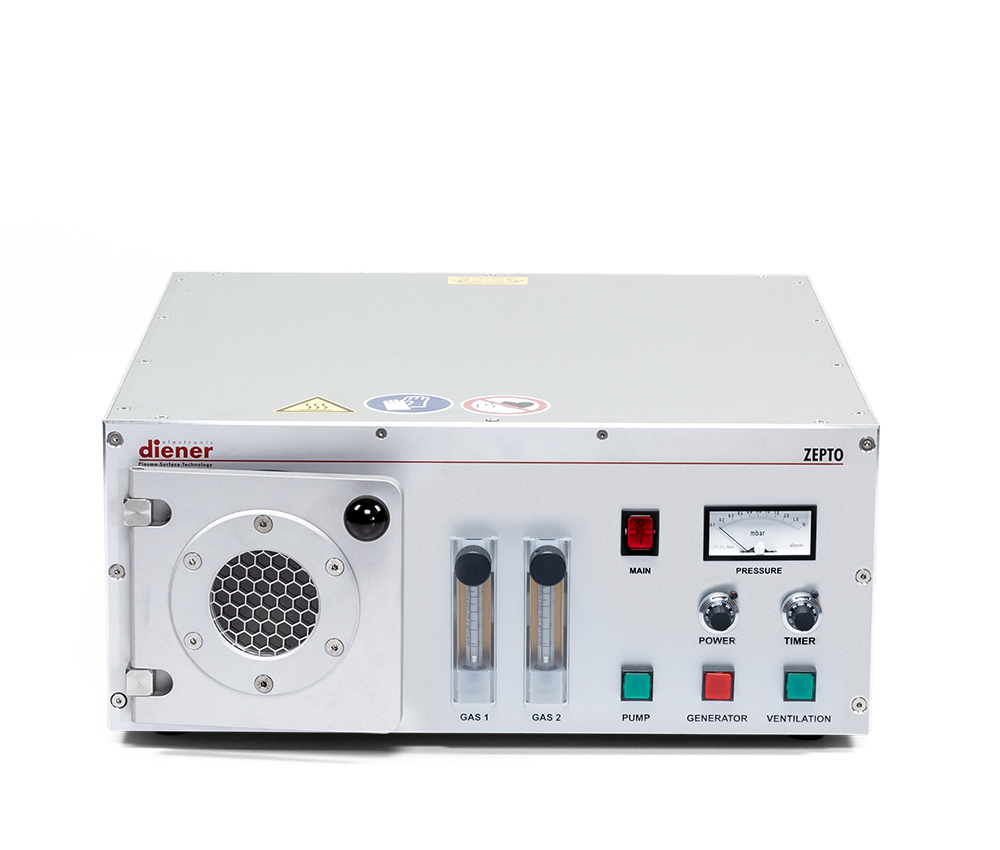

● The 2.6-liter, low-cost plasma laboratory system ZEPTO features manual and basic PC control and is primarily designed for applications such as small-batch production, analysis (SEM, TEM), medical engineering, sterilization, R&D, archaeology, textile technology, and plastics technology.

Specifications：

● Semi-automatic kHz / Semi-automatic MHz

● Dimensions：Width：425 mm  Height：185 mm  Depth：450 mm

● Power Supply：230V | 16A

● Vacuum Chamber：Round borosilicate glass, hinged door Ø：105 mm  Depth：300 mm, volume approximately 2.6 liters

● Gas Supply：2 needle valves

● Generator：

    >40 kHz | Power Output 0-100W

    >13.56 MHz | Power Output 0-200W

● Electrodes：Electrode pair outside the vacuum chamber

● Control Unit：Semi-automatic control unit

● Power Supply：230V | 50-60 Hz

● Pressure Measurement：Pirani

● Pump：Minimum suction capacity 3 cubic meters/hour

Brand：Diener / Germany, CE
