Features and Applications:

● The big kid among our small plasma cleaning systems

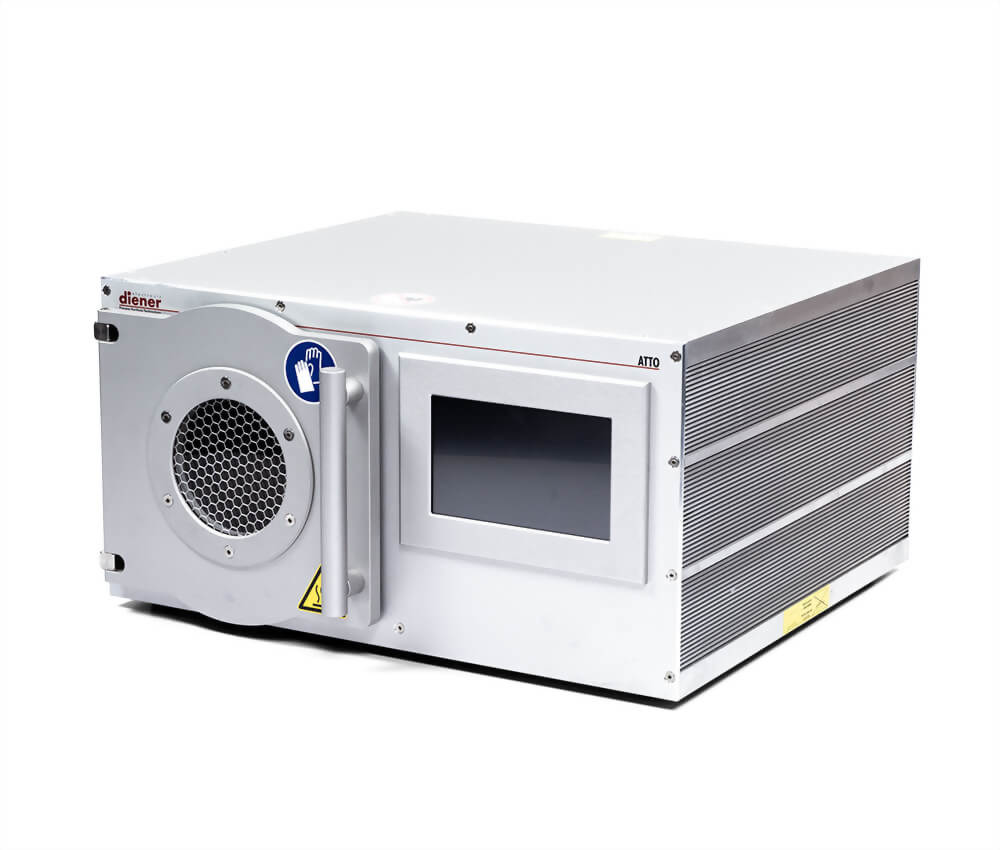

● The ATTO, a 10.5-liter, low-cost plasma laboratory system with manual and basic PC control, is primarily designed for applications such as small-batch manufacturing, analysis (SEM, TEM), medical engineering, sterilization, R&D, archaeology, textile technology, and plastics technology.

Specifications:

● PC kHz / PC MHz

● Dimensions: Width: 525 mm, Height: 257 mm, Depth: 420 mm

● Vacuum Chamber: Round borosilicate glass, hinged door Ø: 211 mm, D: 300 mm, volume approximately 10.5 liters

● Gas Supply: 2 x MFCs

● Plasma Generator: 40 kHz | Power Output 0-200 W

                                  13.56 MHz | Power Output 0-300 W

● Electrodes: Electrodes located outside the vacuum chamber

● Control Unit: 7-inch basic PC control unit (Windows Embedded Compact 7)

● Power Supply: 230V | 50-60 Hz

● Pressure Measurement: Pirani

● Pump: Minimum Suction: 6 cubic meters/hour

Brand: Diener / Germany, CE
