Applications:

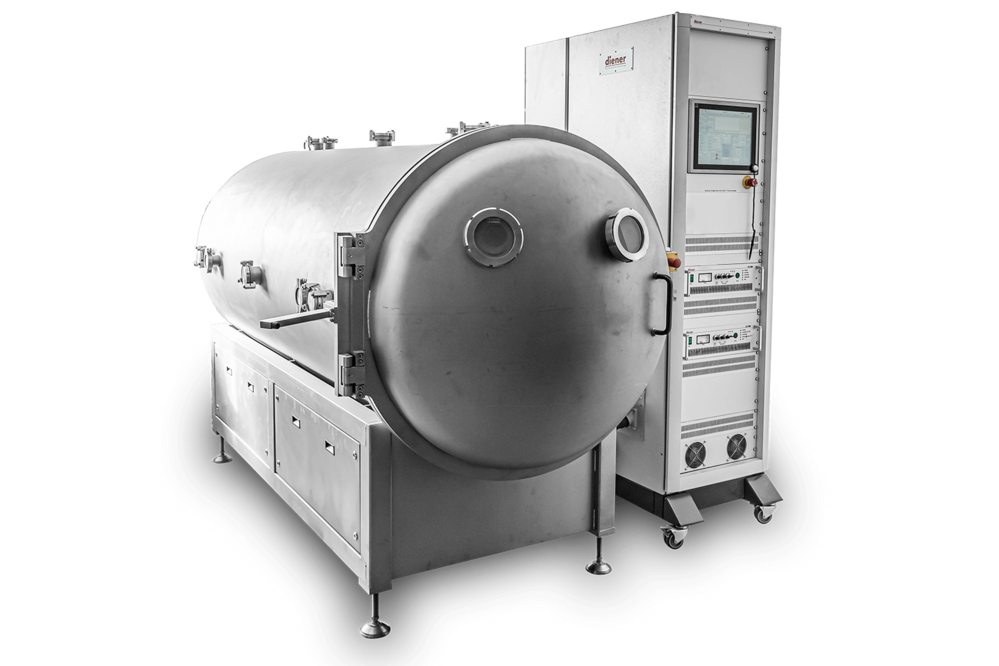

● The Tetra 2800-LF-PC production system has a chamber volume of 2,800 liters and is PC-controlled for high-volume production (cleaning, etching, and activation) in applications such as analysis, archaeology, automotive, R&D, semiconductor technology, small-batch production, plastics technology, medical engineering, microsystems technology, sensor technology, sterilization, and textile technology.

Specifications:

● Chamber volume: Approximately 2,800 liters

● Housing: Control cabinet, 600 mm wide, 1700-2100 mm high, 800 mm deep

● Plasma generator:

    > 80 kHz / 0-1000 kHz; 0-3000 W

    > 13.56 GHz / 0-300 W; 0-600 W; 0-1000 W

    > 2.45 GHz / 0-1200 W

● Control: Fully PC-based

● Application Example: Production/Fully Automatic

● Vacuum Chamber: Stainless Steel Tank, Hinged Door: Ø 1200 mm, D 2500 mm

Brand: Diener / Germany, CE
