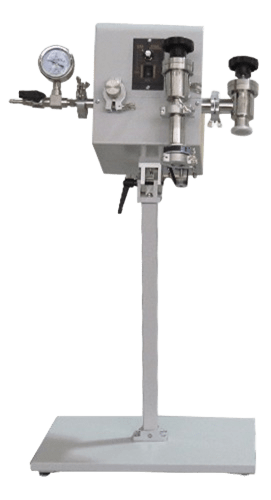

• Test tube vacuum sealing system DXZ-01

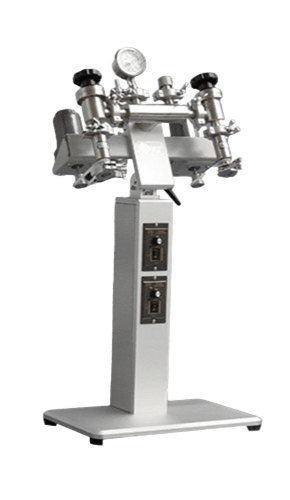

  • Test tube vacuum sealing system DXZ-02
  • Test tube vacuum sealing system DXZ-03

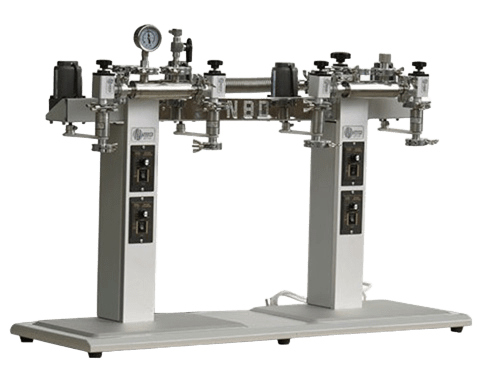

  • Test tube vacuum sealing system DXZ-04

Test tube vacuum sealing system

Model : DXZ-01 / DXZ-02 / DXZ-03 / DXZ-04

Introduction:

        The multi-station rotary tube sealing system is an automated device specifically designed for laboratory environments to improve the efficiency and consistency of test tube sealing. This system is particularly suitable for samples requiring sealing under inert gas protection and vacuum conditions, and is widely used in materials science, chemical engineering, pharmaceuticals, and other fields. Multi-station rotary tube sealing system is renowned for its high efficiency, precise operation, and excellent stability.

The multi-station rotary tube sealing system consists of a rotatable vacuum sealing device, a glass test tube holding device, a vacuum pump, a vacuum gauge, and an oxyhydrogen flame generator.

It is mainly used for vacuum sealing of materials such as metals, piezoelectric ceramic crystals, and powders.


Features:

1. Fast sealing speed, safe and convenient;

2. Quick and easy clamp replacement, adaptable to test tubes of different sizes;

3. Dynamic sealing, eliminating leakage;

4. Ultra-high vacuum design standard.

Model

DXZ-01

DXZ-02

DXZ-03

DXZ-04

Number of Stations

Single Station

Double Station

Triple Station

Four Stations

Sealing Flange Size

10121520mm, etc. (Customizable)

Vacuum Leakage Rate

1 × 10-10 Pa·m/ s

Rotation Speed

0 - 10 rpm

Inflation Port Connector

Φ8 mm Pagoda Connector

Vacuum Interface Size

KF25 / 16

Optional Accessories

Vacuum Pump

Hydrogen-Oxygen Generator

◎ CE Certified

◎ Brand / NOBODY
