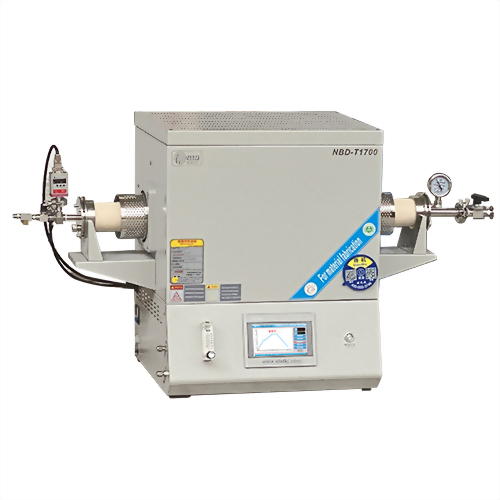

Tubular furnace (pressure controllable type)
Model :
NBD-T1700-80TI
Features：
1. Constant Pressure Control: A built-in pressure control system maintains the pressure inside the furnace at a constant level, even during heating and cooling. This is crucial for experiments requiring precise control of atmosphere conditions.2. Atmosphere Control: Supports a variety of atmospheres, including air, inert gases (such as nitrogen and argon), and reducing gases, to accommodate diverse experimental needs.
3. Temperature Control: Utilizing an advanced temperature control system, the device supports high-precision temperature control, typically ranging from room temperature to 1650°C or higher.
4. Tubular Structure: The tubular structure of the furnace provides a comfortable internal space, making it ideal for processing small batches of samples.
5. Intelligent Operation: Equipped with a touchscreen control interface, it supports program settings and data logging, facilitating operation and monitoring of experimental processes.
6. Safety: Built-in safety features, such as over-temperature protection and power-off protection, ensure safe and stable operation.
Equipment Model：NBD-T1700-80TI
Power Supply：Single-Phase 220V 50/60Hz
Tmax：1700°C
Sensor Type：Type B Thermocouple
Rated Temperature：1650°C
Rated Power：4.5kW
Touch Screen Size：7"
Heating Rate：1°C/Hour - 20°C/Min
Furnace Tube Diameter：Φ80mm
Furnace Chamber Dimensions：φ150*310mm
Furnace Body Dimensions：L1000*H730*D600mm
Constant Pressure System：BD-HY101 (Includes digital vacuum gauge, proportional valve, and vacuum pump)
◎ CE Certified
◎ Brand / NOBODY
