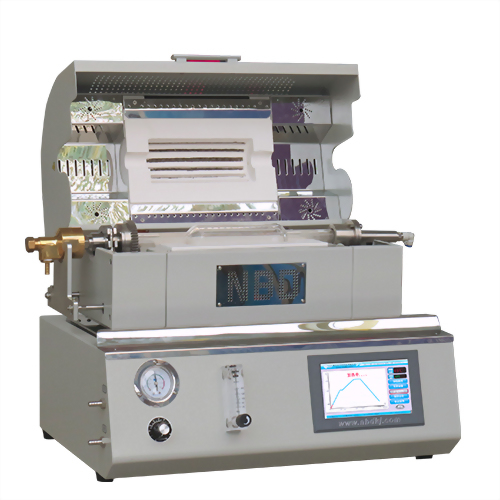

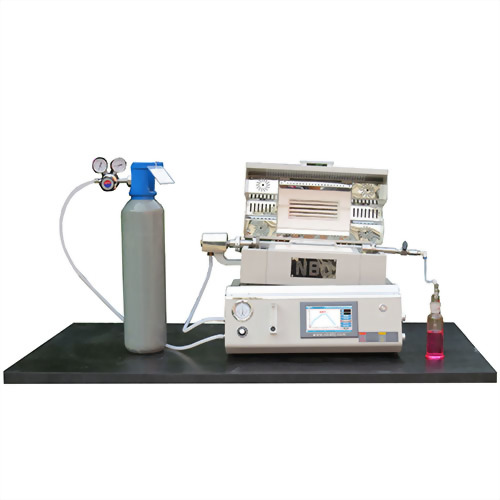

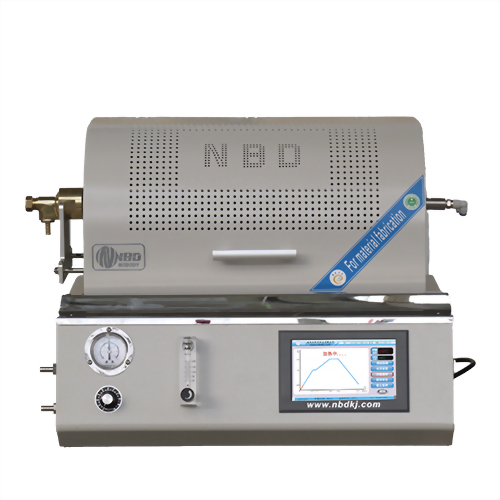

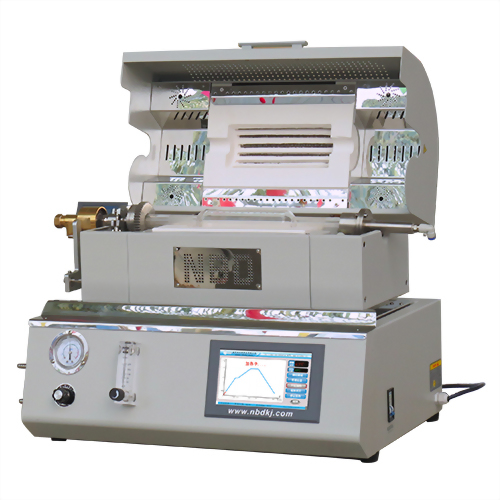

Heat treatment furnace (atmosphere controllable swing and rotation type) 1200℃

Model : NBD-RT1200-50TIF

Features:

1. Double-layer steel structure;

2. High-purity Al2O3 fiber refractory insulation material for maximum energy savings;

3. High-purity alumina coating on refractory ceramics extends service life;

4. Primarily designed for powder or granular sintering, the material is dynamically tumbled within the furnace tube, ensuring uniform heating and full reaction;

5. Excellent dynamic sealing system maintains atmosphere during rotation;

6. High heating efficiency, as material movement increases the heating surface;

7. Vacuum system, power supply system, gas flow, heating system, motion system, process flow, system monitoring, and data acquisition.


Product Model

NBD-RT1200-50TIF

Electrical Specifications

AC220V   1.5KW

Achievable Temperature

1200 ℃ (<1 hour)

Continuous Temperature

1150 ℃ (long-term)

Achievable Heating Rate

≤20 ℃ / min

Heating Zone Length

200 mm

Effective Volume

55 ml

◎ CE Certified

◎ Brand / NOBODY
