Features and Applications:

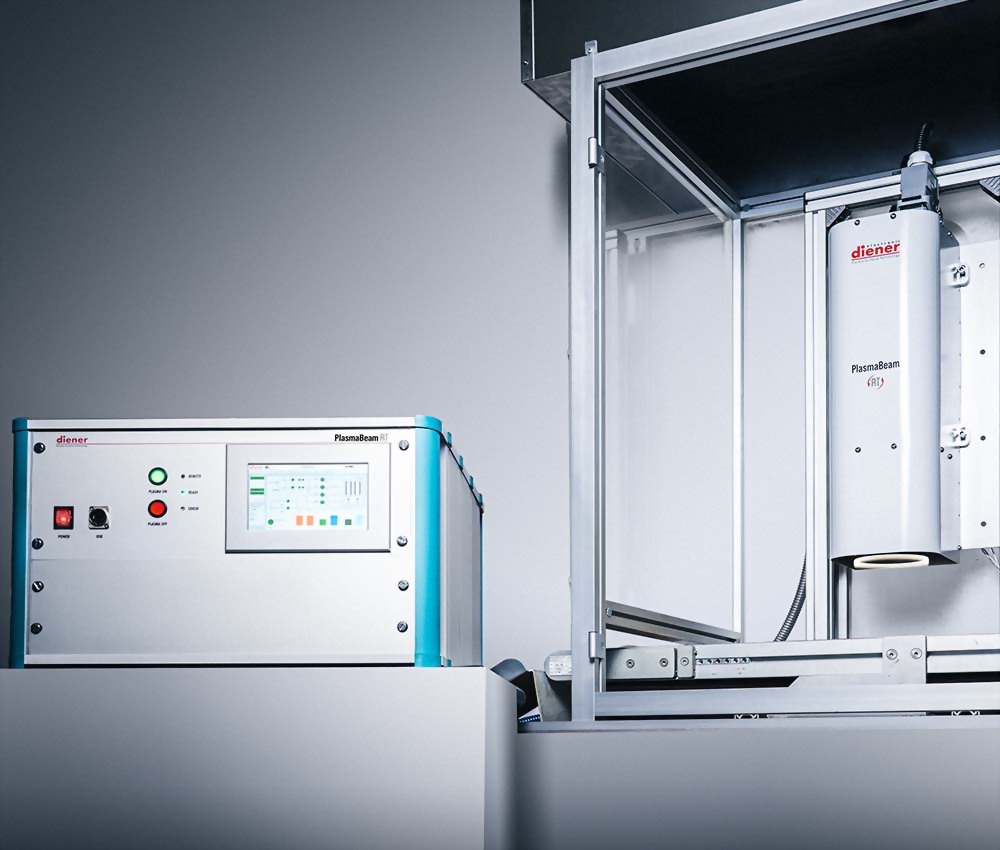

1. Enhance the performance, durability, and aesthetics of your products with Diener electronics' atmospheric pressure plasma systems—an innovative and environmentally friendly technology. This process uses cold plasma via a plasma nozzle (plasma jet) to improve material properties. Surface pretreatment using atmospheric pressure plasma technology is time-saving, cost-effective, and delivers excellent results.

2. The right plasma nozzle for your plasma treatment: Diener electronics offers a choice of four different plasma nozzles that operate in open air. Depending on the nozzle, the plasma is applied in varying treatment widths, from 3-5 mm with our mini nozzles to 120 mm with our rotary RT nozzles. Therefore, there are no limitations to plasma pretreatment, as the plasma nozzles can be positioned adjacent to each other to ensure extensive cleaning and activation.

Specifications:

● Processing Width: 120 mm

● Power Supply: Desktop Housing

    > Width 560 mm

    > Height 355 mm

    > Depth 540 mm

● Plasma Generator:

    > Frequency: 40 kHz

   > Power: ~ 2 x 300 W

● Operation:

    > Semi-automatic control via front panel controls

    > Remote control via rear panel remote connector

● Application Examples:

    > Laboratory/Small Series

    > Production/Fully Automatic

● Plasma Head: W 184 mm, H 600 mm, D 192 mm, Cable Length: 3 m

Brand: Diener / Germany, CE
