Features and Applications:

1. Enhance the performance, durability, and aesthetics of your products with Diener electronics' atmospheric pressure plasma systems, an innovative and environmentally friendly technology. This process uses cold plasma via a plasma nozzle (plasma jet) to improve material properties. Surface pretreatment using atmospheric pressure plasma technology is time-saving and cost-effective, with excellent results.

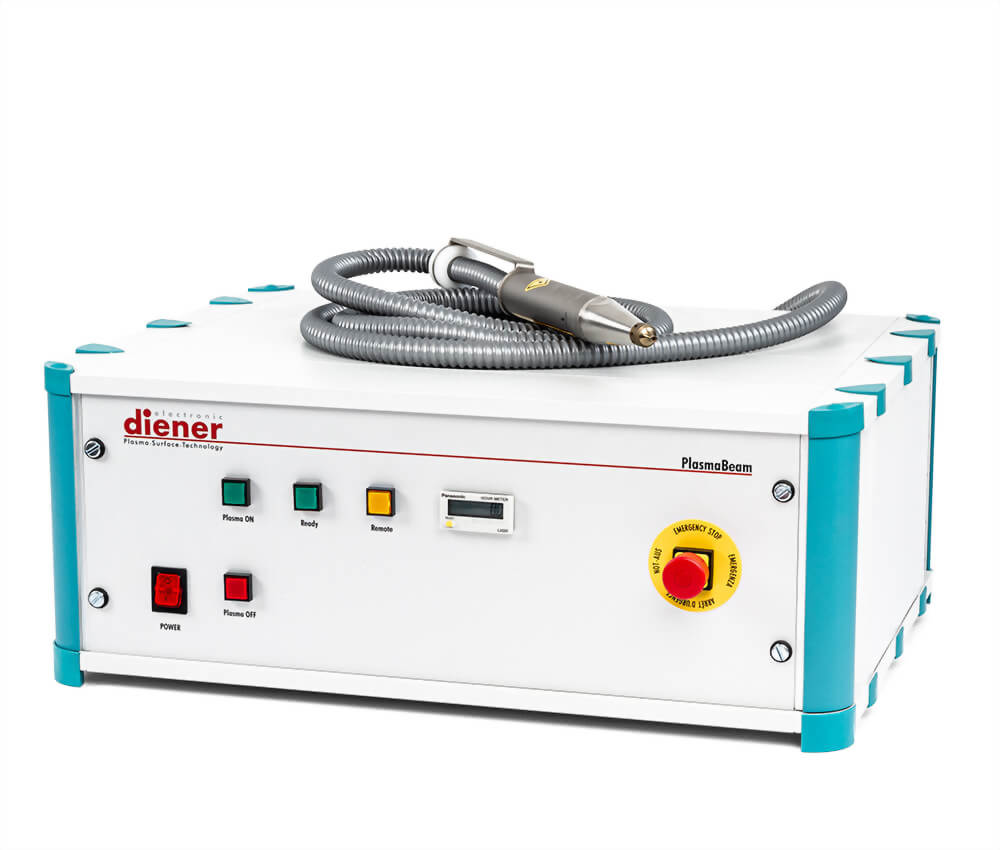

2. PlasmaBeam is an atmospheric pressure plasma processor for surface cleaning and activation. It is primarily used in the following fields: plastics technology, automotive, electrical engineering, elastomer technology, precision engineering, small-batch production, microsystems technology, medical engineering, solar cell technology, research and development, semiconductor technology, optics, and more. Specifications:

● Processing Width: 8 - 10 mm

● Power Supply: Desktop / 19-inch Housing

    > Width 562 / 420 mm

    > Height 211 / 133 mm

    > Depth 420 / 500 mm

● Plasma Generator: Approximately 40 kHz / 300 W

● Operation:

    > Manual: Push button on front panel

    > Semi-automatic: Remote control via remote connector on rear panel

● Application Examples:

    > Laboratory / Small Batch Production

    > Production / Fully Automatic

● Plasma Head:

    > Maximum Ø 32 mm

    > Length 210 mm

    > Weight Approximately 0.5 kg

    > Cable Length 3 m

Brand: Diener / Germany, CE
