Features and Applications:

1. Enhance the performance, durability, and aesthetics of your products with Diener electronics' atmospheric pressure plasma systems – an innovative and environmentally friendly technology. This process uses cold plasma via a plasma nozzle (plasma jet) to improve material properties. Surface pretreatment using atmospheric pressure plasma technology is time-saving, cost-effective, and delivers excellent results.

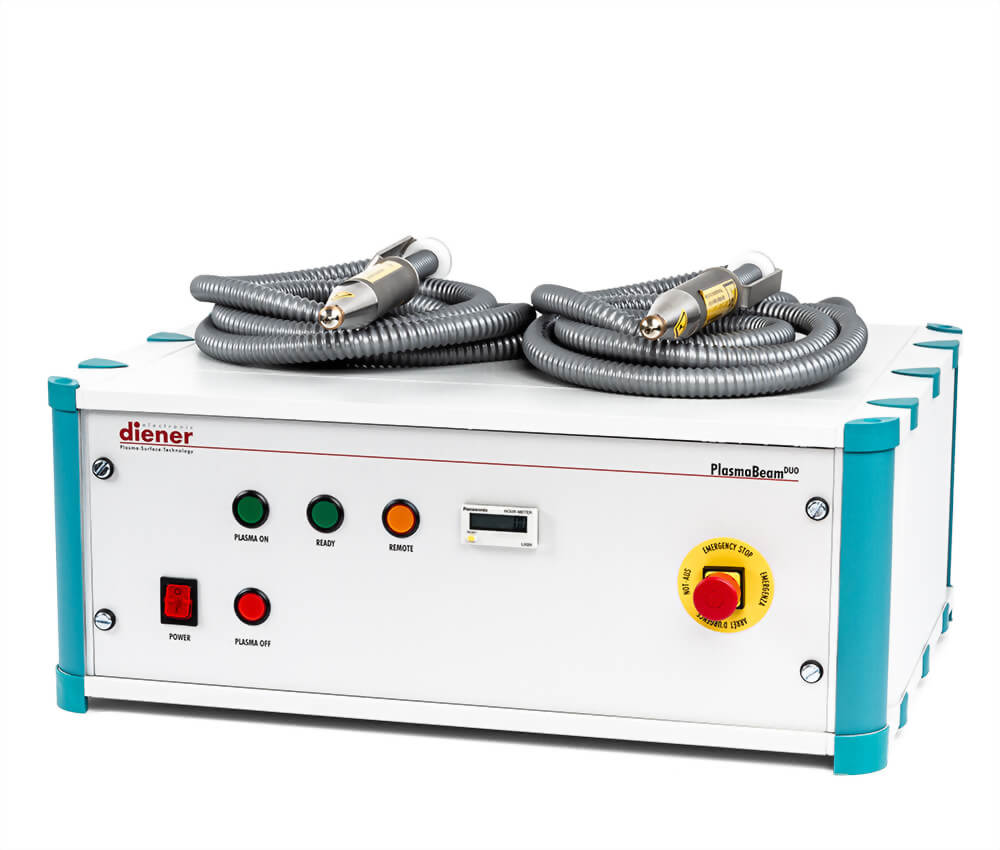

    1.2. The PlasmaBeam Duo is a further development of the atmospheric pressure plasma processor for surface cleaning and activation. It is used in the following fields: plastics technology, automotive, electrical engineering, elastomer technology, precision engineering, small-batch production, microsystems technology, medical engineering, solar cell technology, research and development, semiconductor technology, optics, and more.

Specifications:

● Processing Width: 8-10 mm/Nozzle

● Power Supply:

    > Width 562 mm

    > Height 210 mm

    > Depth 420 mm

● Plasma Generator: Approximately 40 kHz / 300 W (per nozzle)

● Operation:

    > Manual: Push button on front panel

    > Semi-automatic: Remote control via remote connector on rear panel

● Application Examples:

    > Laboratory/Small Batch Production

    > Production/Fully Automatic

● Plasma Head:

    > 2 Generators:

        1. Maximum Diameter 32 mm

        2. Length 210 mm

        3. Weight Approximately 0.5 kg

        4. Cable Length 3 m

Brand: Diener / Germany, CE
