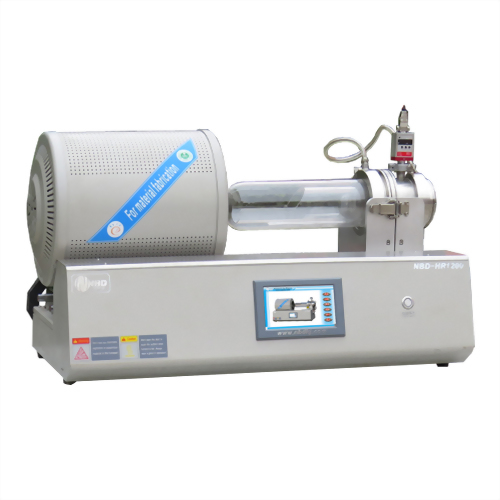

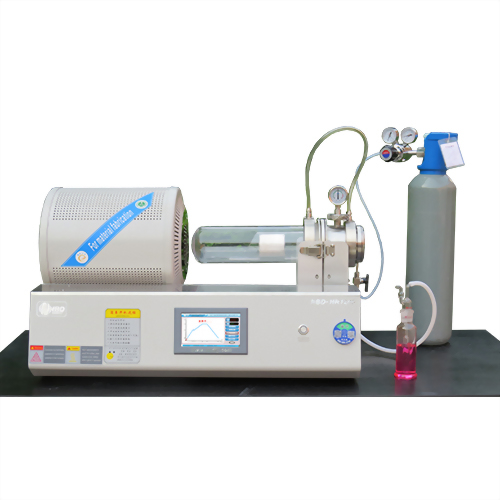

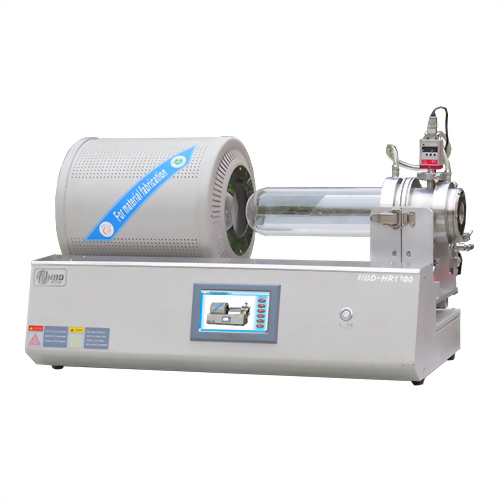

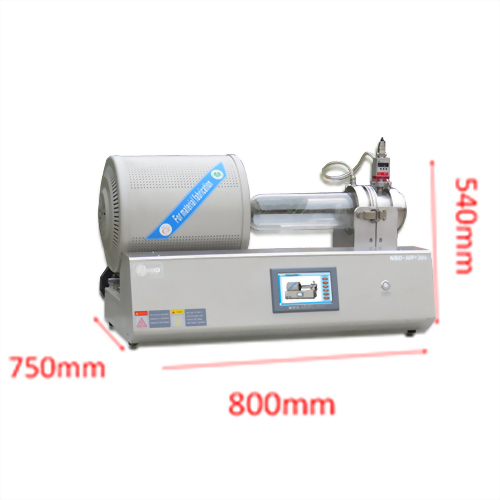

RTP rapid annealing furnace
Features：
1. Double-layer steel structure;
2. High-purity Al2O3 fiber refractory insulation material for maximum energy savings;
3. High-purity alumina coating on refractory ceramics extends service life;
4. Alumina tube plugs allow you to create a customized temperature gradient within the tube;
5. This device is patented, patent number: CN201310005931.6.
|
Product Model |
NBD-HR1200-110TI |
|
Electrical Specifications |
AC380V 15KW |
|
Available Temperature |
1100℃ （External water cooling required for extended use） |
|
Long-Term Operating Temperature Range |
300 ~ 1150℃ （External water cooling required for continuous use） |
|
Available Heating Rate |
Recommended ≤100℃ / S |
|
Heating Zone Length |
200 mm |
|
Sensor Type |
S-type single platinum-rhodium |
|
Heating Zone Length |
200 mm |
|
Reaction Chamber Inner Diameter |
Φ100 X 200 mm |
|
Effective Space |
3.5" |
|
Furnace Tube Dimensions |
Φ80 × 120 mm |
◎ CE Certified
◎ Brand / NOBODY
