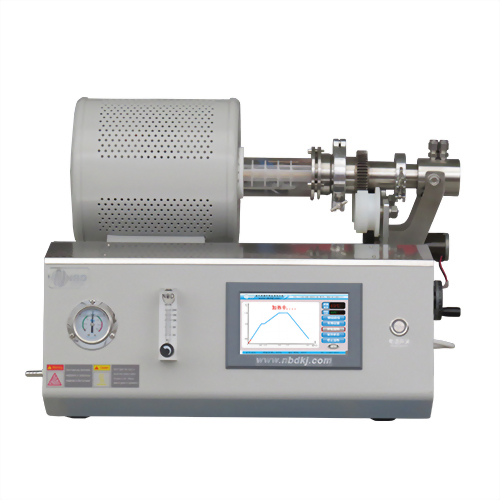

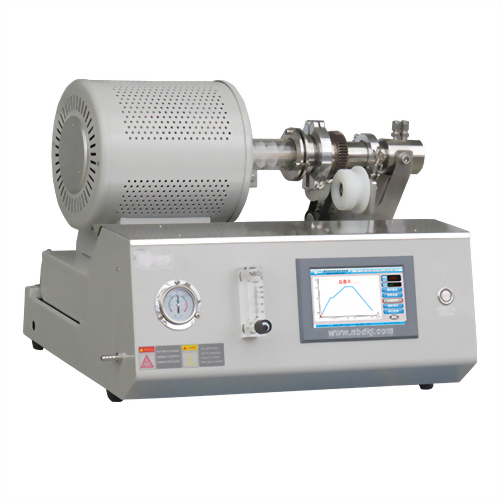

Heat treatment furnace (micro stirring type)
Features：
1. Constant rotation ensures more uniform heating and contact between the material and the gas.
2. High-purity Al2O3 fiber refractory insulation material saves energy and reduces consumption.
3. High-purity alumina coating extends the life of the heating element.

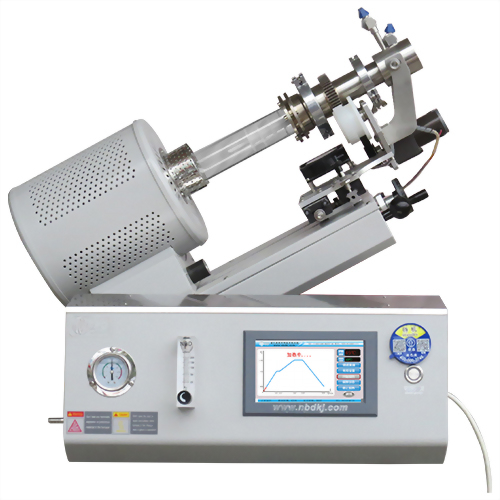

4. Four adjustable angles (30, 45, 60, and 90 degrees) make furnace tube replacement simple.
|
Product Model |
NBD-RT1200-50TI |
|
Electrical Specifications |
AC220V 1.2KW |
|
Achievable Temperature |
1200 ℃ （<1 hour） |
|
Continuous Temperature |
1150 ℃ （Continuous） |
|
Speed (min) |
Adjustable |
|
Recommended Heating Rate |
≤ 10 ℃ / min |
|
Temperature Zone Dimensions |
φ80 × 100 mm |
|
Furnace Tube Dimensions |
Φ50 × 220 mm （One End Sealed） |
|
Furnace Body Dimensions |
L 560 × H 450 × D 485 mm |
◎ CE Certified
◎ Brand / NOBODY
